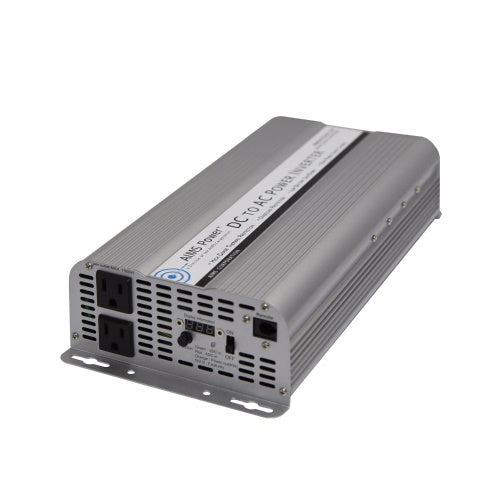

2500 Watt 12VDC 120VAC w/ 5000 Watt Surge Power Inverter

What really makes this 2500 watt AIMS Power inverter special is its capability to run off of most vehicles and/or RVs'/boats' standard power systems at 12 volts. That makes the inverter very attractive to mobile business owners since users don€t have to modify a vehicle's standard power system in order to run the inverter off of a car or truck. This definitely saves some money if upgrading a fleet of vehicles with some aftermarket equipment that requires this much power.

The unit features two easily-accessible AC outlets with a maximum output of 1500 watts. The 200 percent surge capabilities of this unit should only be used as a safety feature. Other safety features include over-temperature and over-load LED indicators that are used as a warning system for the operator. Also on the AC side of the unit are the battery voltage and amperage meters which display the usage levels of your battery bank. This inverter is equipped with dual cooling fans and over-temperature protection that keeps it from overheating.

Features:

• 2500 Watt max continuous power
• 12 Volt Power Inverter
• Modified sine wave
• Volt meter on front panel to monitor your battery voltage
• Amp meter on front panel to monitor your current use (rate at which battery is drained)
• Over Temperature LED indicator
• Over Load LED indicator
• 2 AC receptacles (UL rated 1500 watts max per an outlet)
• On/off switch
• Over Temperature protection
• Over Load protection Single cooling fan operation thermally controlled Internally fuse protected AC output short circuit protection
• Auto reset on most fault conditions
• Aluminum case for optimal cooling
• Pre-wired for remote on/off switch
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support
• 1 Year Warranty Parts and Labor

• Continuous output power: 2500 Watts
• Surge power capability (peak power): 5000 Watts
• DC input / operating voltage: 10.5 to 17 Volts
• Output voltage: 120 Volts AC +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 60 Hz +/- 1 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 Volts
• Battery low voltage shutdown: 10 +/- 0.5 Volts
• No load current: < 0.2 Amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -15 degrees Celsius
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
• AC Output Socket Type: quadruple Type 2 -3 prong
• High input voltage protection: 17 volts
• Low input voltage shutdown: 10 volts
• Internal fuse protection
• Product size (L x W x H): 14.5 x 6.5 x 3.0 inches
• Weight: unit 6.1 lbs boxed 8 lbs
• UL maximum recommended per outlet 1500W

Dimensions:

• Unit Weight: 6 lbs.
• Unit Size L x W x H: 14.64 x 6.61 x 3.14 inches
• Shipping Weight: 8 lbs.
• Shipping L x W x H: 18 x 12 x 6 inches

For models purchased before 1/20/2015 use the following remote: AIMS Remote On/Off Switch

For models purchased after 1/20/2015 use the following remote: AIMS Power Flush Mount Remote Switch

Download the product manual
