3 Way MC4 Solar Panel Branch Cable Connector Pair

SKU
MC4-3WAY
$6.38
OR
Description

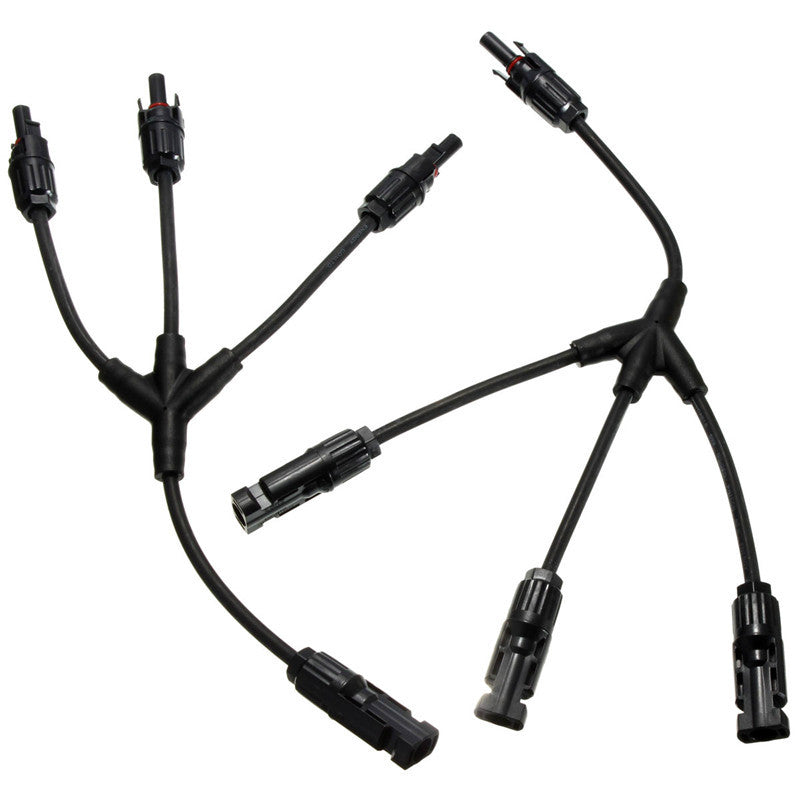

3-to-1 Solar Panel MC4 Connectors

1 Pair M/FFF and F/MMM - Y Style

This Y type three to one MC4 branch connector is perfect for connecting three solar panels in parallel.This pair includes 1 male to 3 female (M/FFF) and 1 female to 3 male (F/MMM) cable connectors.

Features:

  • High-quality materials, strong and durable
  • Compatible with PV cables with different insulation diameters
  • Automatic locking provides safe docking, repeated plugging and unplugging
  • High voltage design, excellent performance of low contact resistance
  • Waterproof, fireproof, dustproof, high and low temperature, and ultraviolet resistant
  • Designed specifically for solar PV module system connections, it is suitable for indoor and outdoor PV module connections



Specifications:

  • Rated Voltage: TUV 1000V DC / UL 600V DC
  • Rating Current: 20A - 30A
  • Suitable Cable Cross Sections: 2.5 mm2-6.0 mm2 / 14AWG-10AWG
  • Pin Dimension: 4.0mm
  • Protection Class: Class II
  • Contact Material: Copper, tin-plated
  • Contact Resistance: 5mW
  • Connector Material: PPO
  • Degree of Protection: IP IP67(IEC 60529)
  • Withdrawal Force: 3 50N
  • Insertion Force: 50N
  • Temperature Range: -40°C to +85°C
  • Flame Class: UL94V - 0

If you're needing to make professional solar PV cables, be sure to check out our Professional MC4 Solar PV Cable Crimping Pliers.


Watch our Tutorial on How to Make Your Own Professional Quality Solar PV Cables:
