600 Watt Dump Load (2 Resistor Bank)

Write a Review

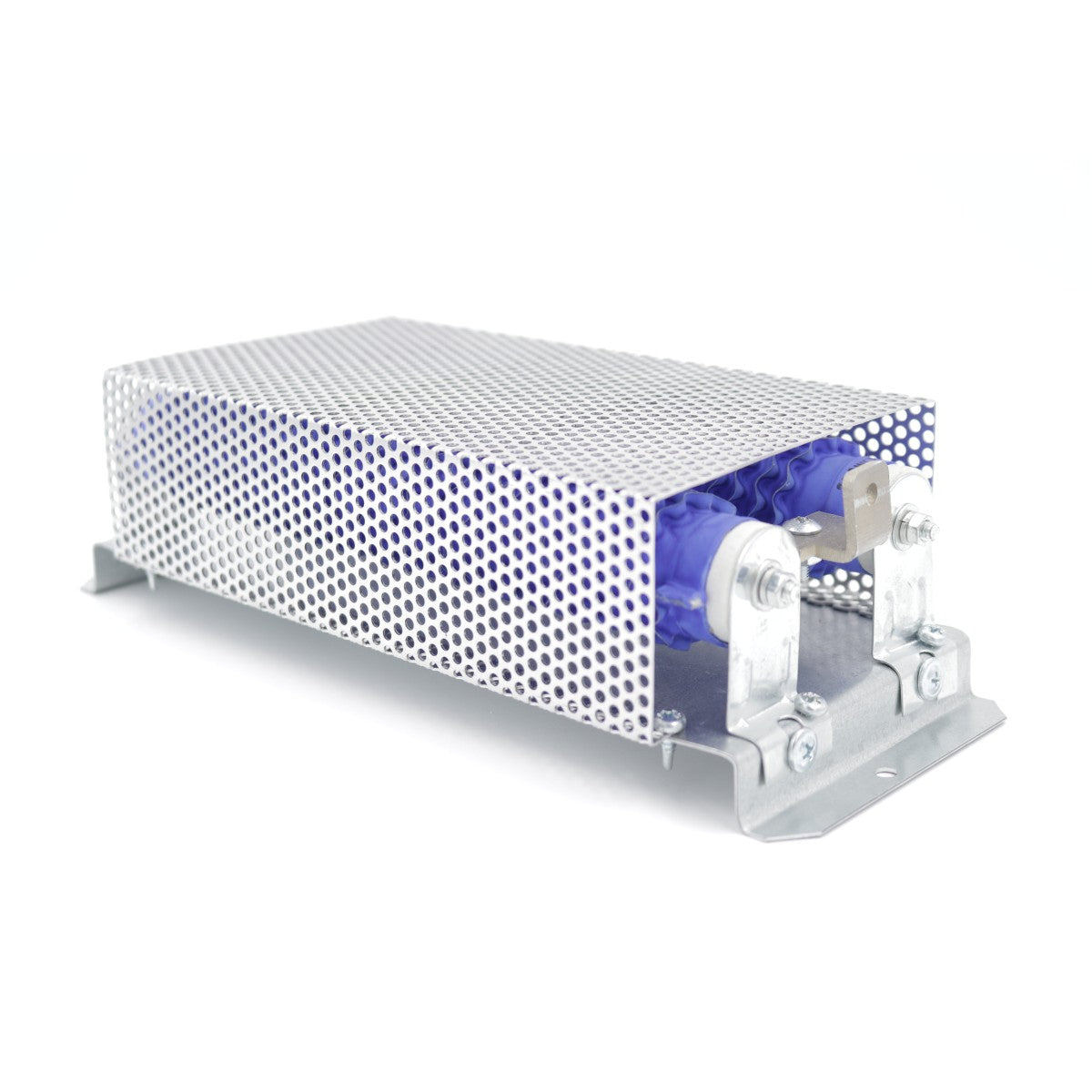

  • 600 Watt Dump Load Main

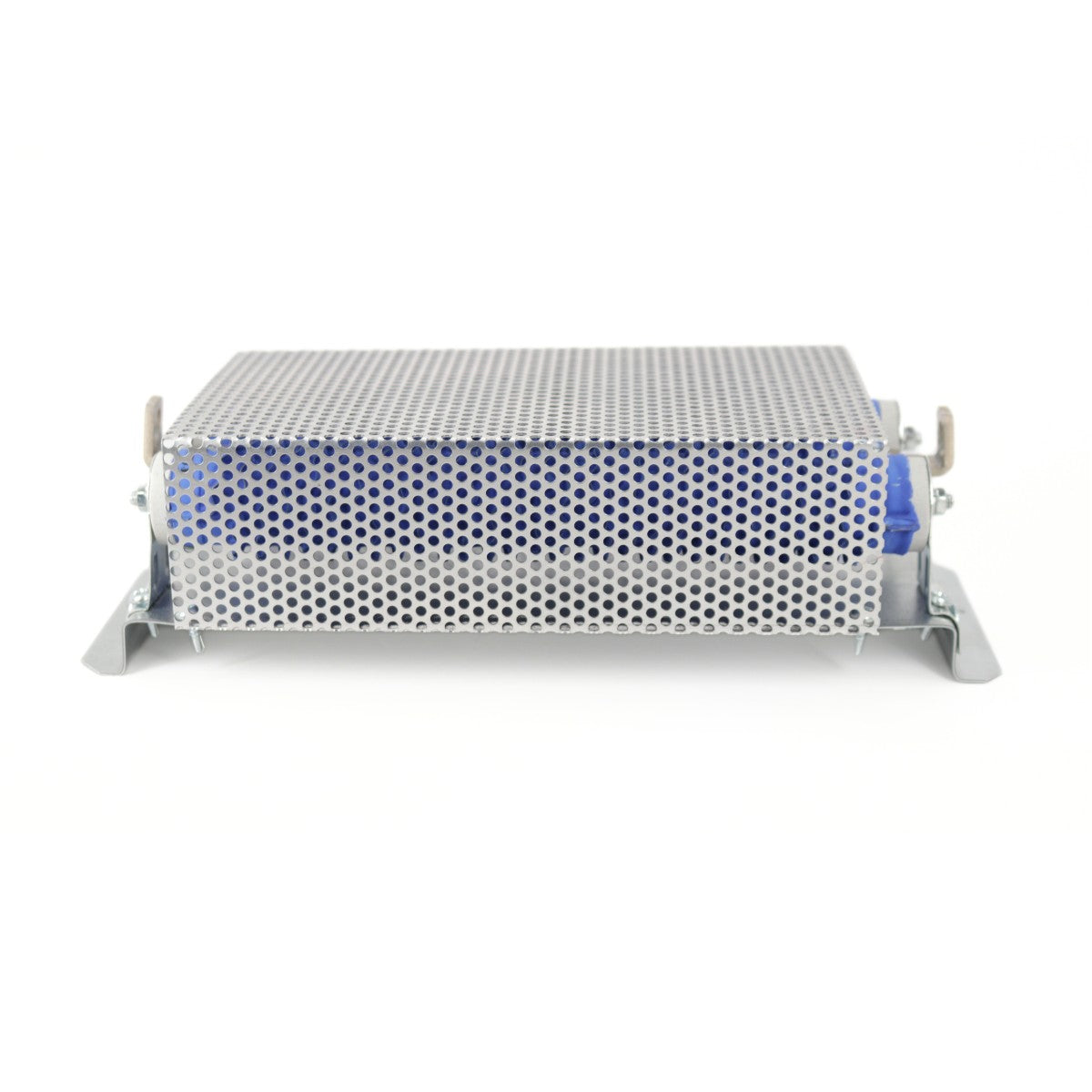

  • 600 Watt Dump Load Side


600 Watt Divert Load Resistor Bank

This divert load resistor is for use to divert the excess power being generated when your wind turbine generator batteries are full and can be ran at 100% duty cycle due to the quality rib wound design. It can also be used with a solar array in diversion mode.

The unit can be used alone to provide free heat as well by hooking your solar panels directly to it. For an alternative dump load see our dc water heating elements.


  • (approx.) 11.5 x 4 x 3 1/4 inches (29.21 x 10.16 x 8.25 cm)
  12 Volt Specifications 24 Volt Specifications 48 Volt Specifications
Voltage 12 Volts 24 Volts 48 Volts
Amperage 50 Amps 25 Amps 12.5 Amps
Wattage 600 Watts 600 Watts 600 Watts

You need to divert the excess power being generated to a load so your wind turbine generators will NOT go into high speed freewheeling in heavy winds.

Note: These resistors can get very hot


What is a Dump Load?

Watch our video below to understand why a dump load is necessary, especially for a wind turbine.
