Description

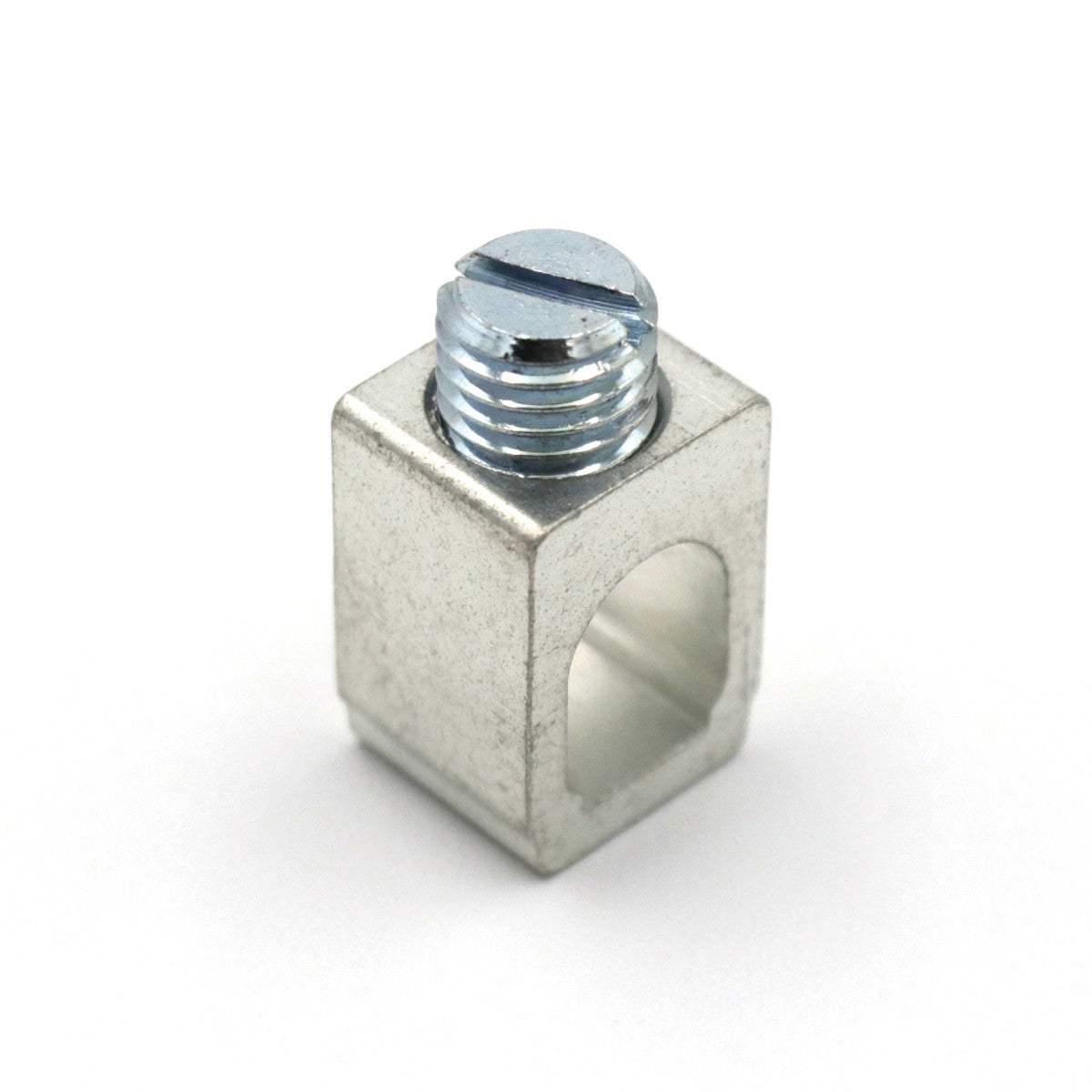

Box Collar Lug
2-14 AWG Wire

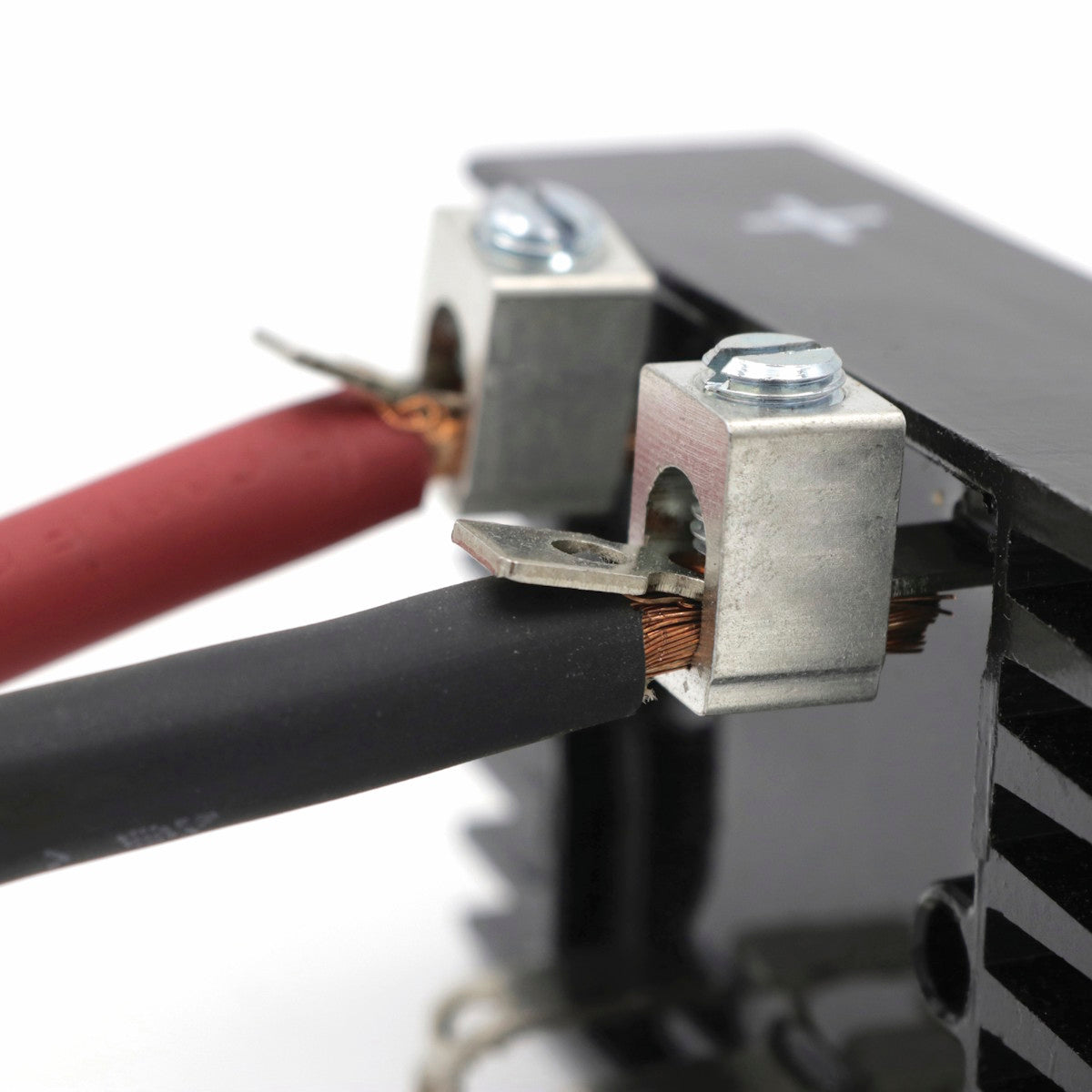

Great for connecting cables to rectifiers! Larger body style allows more room in the wire hole for larger cable sizes.
Specifications:
2 AWG OEM
2-14 AWG Single Wire Range
Tin-plated Aluminum with Steel Screw
Aluminum or Copper wire
CU7AL
167°F/75°C Temperature Rating
OEM Bus Tang Mounted
UL Recognized at 600V (acceptable for use through 2000V)
CSA Certified
Dimensions: 0.47" x 0.66" x 0.41" (11.9x16.8x10.4 mm)
