Digital All In One Charge Controller with LED Meter for 3 Phase and DC Systems

Write a Review
SKU:
3PAL-DIG
$344.99 - $364.99
  • Dual LCD Panel Meter

Description

Hybrid Wind and Solar Diversion Charge Controller

Available in 12, 24, and 48 volt options - with LED meter that shows battery voltage.

*Compatible with lead acid and AGM batteries - cannot be used with lithium batteries.




Comes pre-wired for plug and play with:

  • 600 watt divert load
  • 3-phase brake switch
  • charge controller with LED volt meter
  • relay
  • heavy duty battery cables
  • and rectifier for 3-phase output wind turbine connection
You can also connect additional DC wind turbines and solar panels to the board. Designed, assembled and quality checked in Missouri USA using global parts.

Some of the key features of this hybrid controller are:

  • Dual microprocessor controlled for stability and accuracy
  • Multiple user changeable settings and trip points for many various system requirements and applicationsYou can change the dump point voltage level, end of dump voltage level, and length of time in divert mode when end dump point voltage is reached (between 0 to 999 seconds, or 0 to 999 minutes)
  • Isolated Electronics Protection - Almost impossible to accidentally connect wind or solar directly to the circuit board
  • On board relay isolates electronics from back voltage spikes from large 440 amp relay. This is important to get the longest life out of the electronics. No one else has this!
  • High amp rating: 440 amps, 10,000 watts; 100 amps continuous for the solar side.
  • Battery Status LED lets you know your battery's actual voltage!
  • Green LED on board lets you know the controller is in dump mode
  • Plug & Play: Long leads for easy termination to your battery or battery bank
  • Can divert the charging source from the batteries to the load or dump both the batteries along with the charging source.
  • Connect both wind and solar at the same time
  • Reverse polarity protection
  • Ultra low power consumption, even with the voltmeter on (almost negligible).The voltmeter can be set to turn off after periods of inactivity.
  • Comes with 5 feet of heavy duty cables.

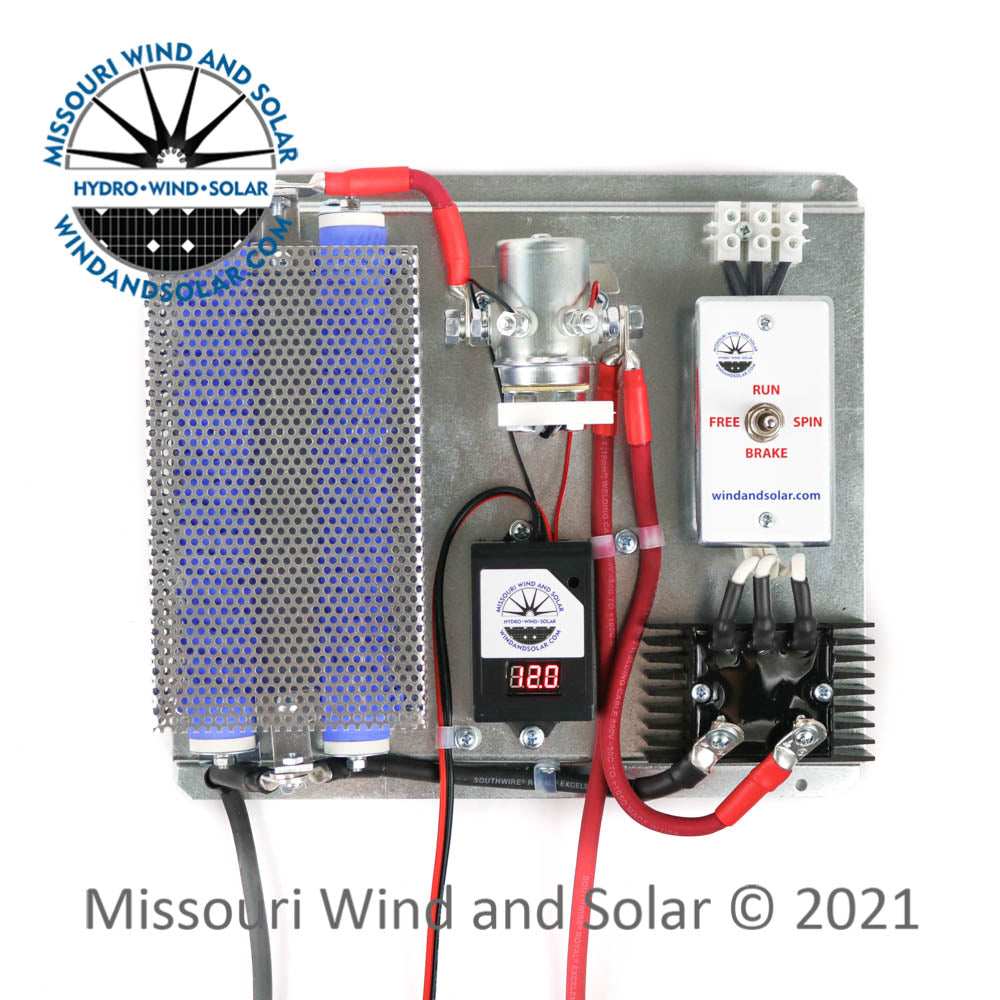

  • Comes completely pre-wired as shown above.
  • Mounting Plate Dimensions: 12 inches x 12 inches
  • Battery not included
  • 1 Year Manufacturer Warranty

The hybrid charge controller comes with a 600 Watt divert load for 12, 24, or 48 volt systems, 3-phase 50 amp brake switch, and high amp 1000 volt rectifier. In addition, the diversion controller has most of the features of our larger controllers but is much more compact and economical.
