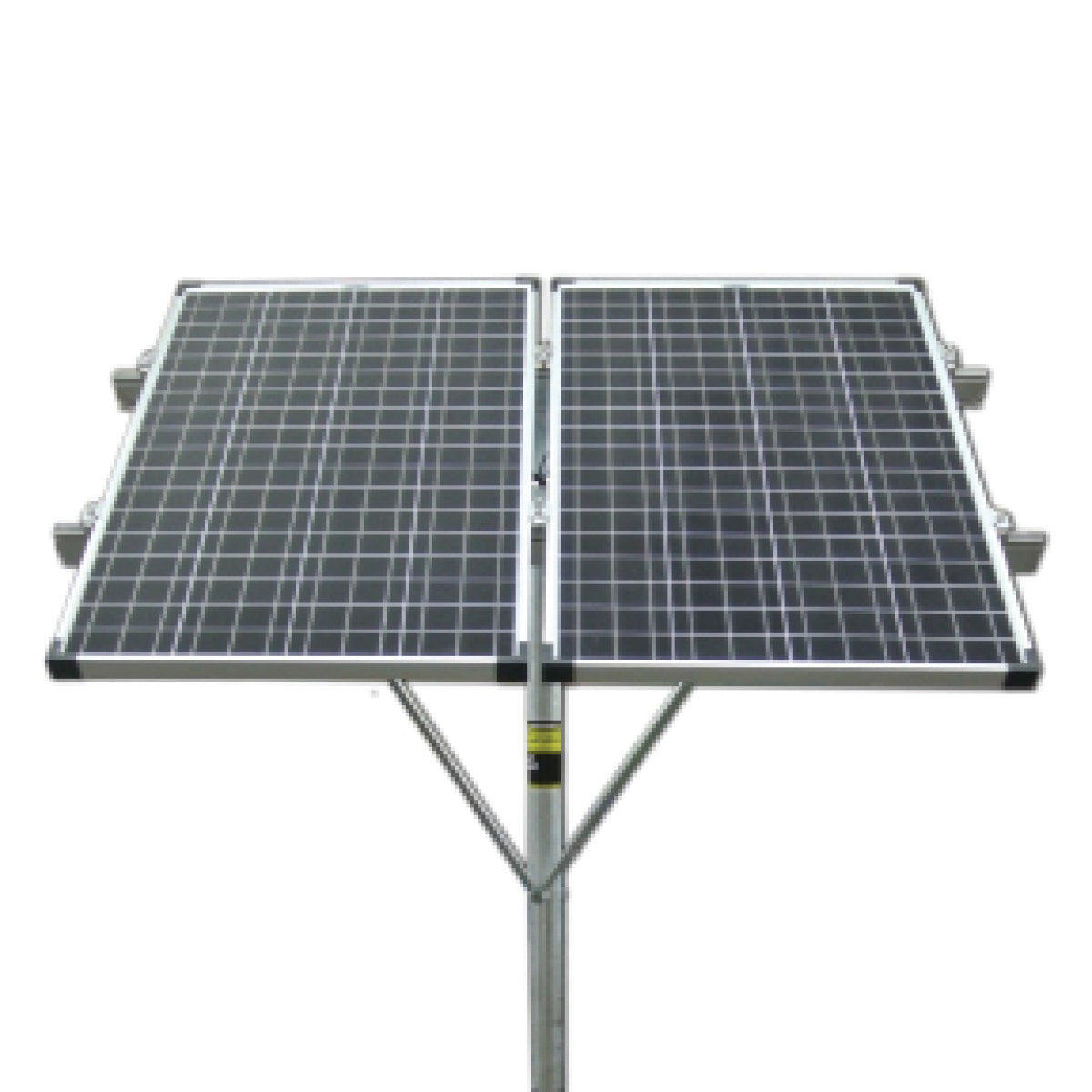

Double 100 Watt Solar Panel Top Of Pole Mounting Rack

Write a Review
SKU:
POLE-200W
  • Pole Mounting Rack for Two 100 Watt Solar Panels
  • Top of Pole Mounting Rack with Adjustable Pitch
  • Double 100 Watt Solar Panel Top Of Pole Mounting Kit
$216.89 - $240.89

Description

Double 100 Watt Panel/Short Mount

Holds two 100 watt solar panels (not included).

Our top of pole solar panel mount features an adjustable pitch angle to sun as well as side to side to get the best angle on your solar panels year round! The convenient design allows you to easily maintain, adjust, and clean your solar panels without having to climb a ladder.

Support bands fit a 2" metal pipe. Let us know the width of your solar panel frame in the comments at checkout so we can send the correct end clamps!

Solar panel mounting kit includes:

  • (1) Solar mount-short
  • (2) Solar mount ends
  • (2) support arms 1/2" x 30" EMT
  • (2) 5 foot Unirac Rails (10' of rail total)
  • (1) 2-3/8" Brace band (fits 2" metal pipe)
  • (1) 2-3/8" Pipe grip tie (fits 2" metal pipe)
  • (12) 3/8" Bolts and lock nuts*
  • (4) end clamps
  • (2) mid clamps

B End Clamp D End Clamp E End Clamp F End Clamp K End Clamp AF Universal End Clamp
Fits 30 mm to 32 mm
(1.18 to 1.26") module thickness		 Fits 38 mm to 40 mm
(1.50 to 1.57") module thickness		 Fits 50 mm to 51 mm
(1.97 to 2.00") module thickness		 Fits 45 mm to 47 mm
(1.77 to 1.85") module thickness		 Fits 39 mm to 41 mm
(1.54 to 1.61") module thickness		 Fits 30 mm to 46 mm
(1.18 to 1.81") module thickness



* YouTube video shows locking washers. These are no longer included as they have been replaced with lock nuts.

Specifications:

  • Product Weight: 16.4 lbs
  • Assembled Dimensions: 4' x 4' x 5'

Please allow space for mid clamps in the center and end clamps on the outside. If you are unsure if your solar panels will fit this rack, please contact us.

Product Documents:

100 percent made in the USA



Watch our video where Jeff talks about the features of the Double 100 Watt Solar Panel Top of Pole Mounting Rack








Product Assembly:
