Missouri Wind and Solar

Double 90 Amp PMA Rectifier Kit For Wind Turbines

Write a Review


For dual core permanent magnet alternator (PMA) & permanent magnet generator (PMG) wind turbines

Rectifier Features:

  • A must for high amp output wind turbines. Continuous duty, will accept large cable.
  • Replace the original auto type rectifier with this one!!
  • This is the highest amperage on the market today - and only by Missouri Wind and Solar, the leader in do-it-yourself wind and solar.
  • Good cooling capabilities, can handle 90 Amps continuously using air cooling, no fan required.
  • Works on all AC output wind turbines that produce 90 Amps or less.
  • Use self-tapping screws or the spade terminals to connect your wires


Rectifier Specifications:

  • Operating range is 0 to 1000 Volts
  • Two mounting holes for easy securing

NOTICE: Use only one rectifier per turbine.

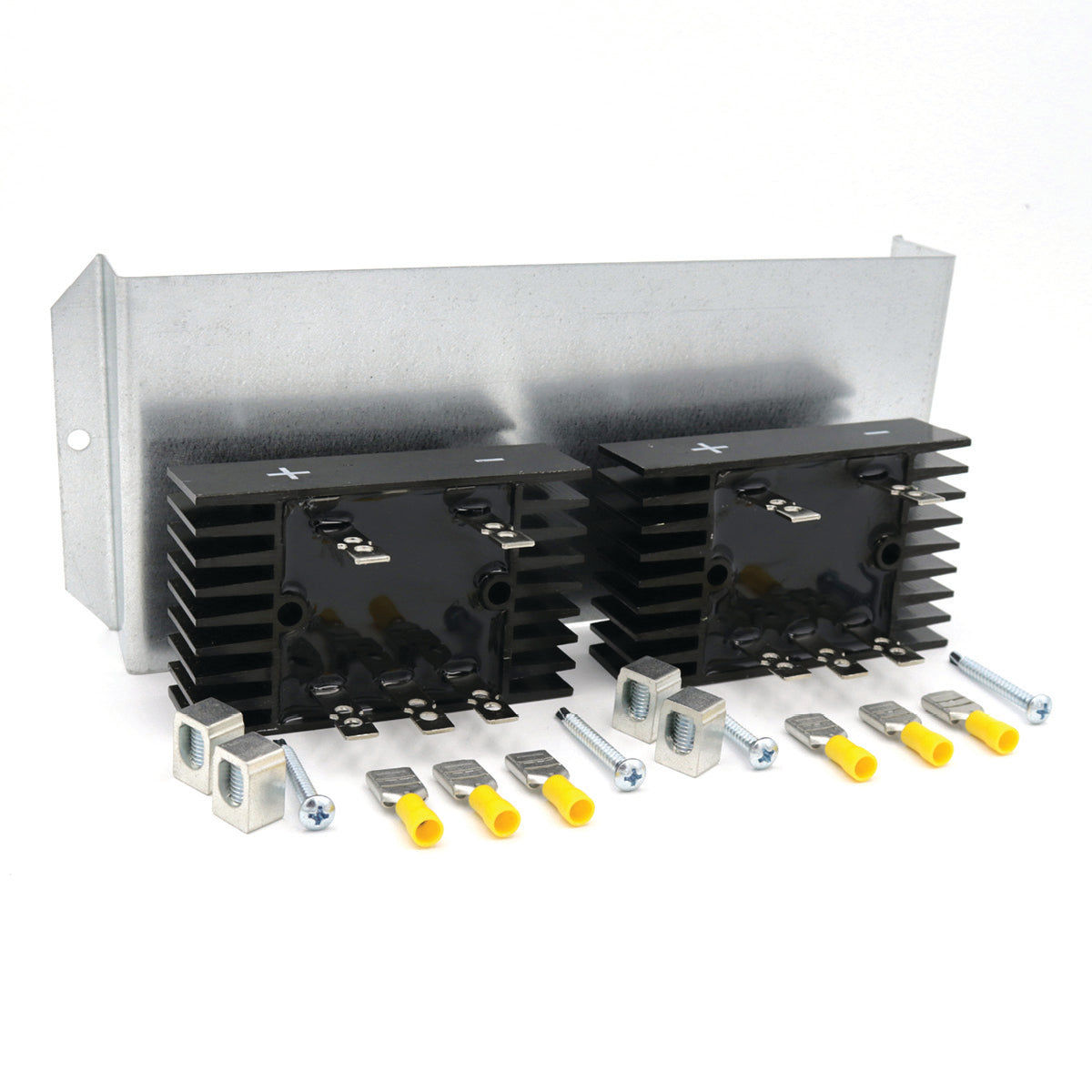

Kit Contains:

  • 2 - 90 amp,1000 volt rectifiers
  • 6 - 3/8" Spade Terminals
  • 4 - 2 AWG Box Collar Lugs
  • 4 - self-tapping screws for rectifiers
  • 1 - Galvanized mounting plate 4" wide x 11 1/4" long
