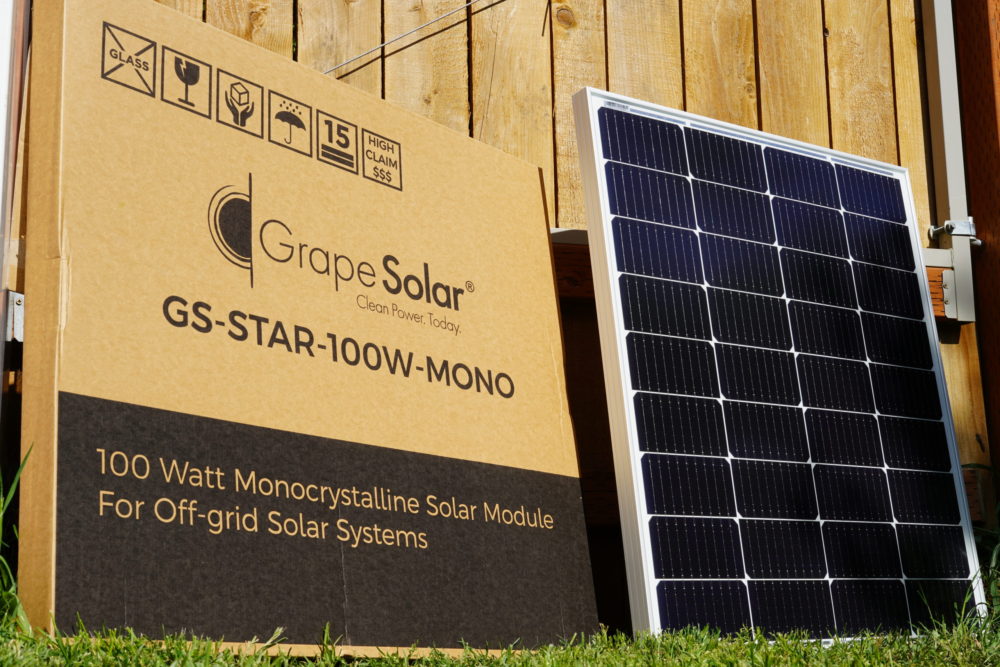

Grape Star 100 Watt 12 Volt Monocrystalline Solar Panel
SKU
GRAPE-STAR-100W
Description
This Grape Solar 12 volt monocrystalline solar panel is the perfect item for an off-grid application - great for 12 and 24 volt arrays. Use it for your pond aeration, with an RV, boat, electric fence, DC lights, etc.
The panels include cables with MC4 connectors for quick connections.
Electrical Specifications:
| Maximum Power (Pmax) | 100 Watts |
| Maximum System Voltage | 600 VDC |
| Optimum Operating Voltage (VMP) | 19.12 Volts |
| Optimum Operating Current (IMP) | 5.23 Amps |
| Open Circuit Voltage (VOC) | 23.1 Volts |
| Short Circuit Current (ISC) | 5.59 Amps |
| Operating Temperature | -40°C to +85°C |
| Maximum Series Fuse Rating | 15A |
Mechanical Specifications:
| Cell Size | 6.54 x 3.27 in (166 x 83 mm) |
| Solar Panel Dimensions | 31.89 x 28.15 x 1.38 in (810 x 715 x 35 mm) |
| Number of Cells | 36 |
| Weight | 15.4 lbs (7 kg) |
| Mounting Hole Dimensions | 0.35 x 0.55 in (9 x 14 mm) |
| Cable Length | 47.2 in (1200 mm) |
| Connector Type | MC4 Compatible |
| Junction Box | IP65 |
| Rated Snow / Wind Load | 50 lbs/ft2 |
Panel Construction:
-
IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
-
High transmittance, low iron-tempered glass with enhanced stiffness and impact resistance
-
Corrosion-resistant aluminum frame with corner supports allows extended outdoor use; the panels can last for decades
- Bypass diodes minimize power drop caused by shade prevent reverse current flow
-
Advanced back sheet material with multi-layer lamination to provide longevity and performance
Panel Warranty:
- 5-year limited product warranty
- 10-year limited 90% power output warranty
- 25-year limited 80% power output warranty
