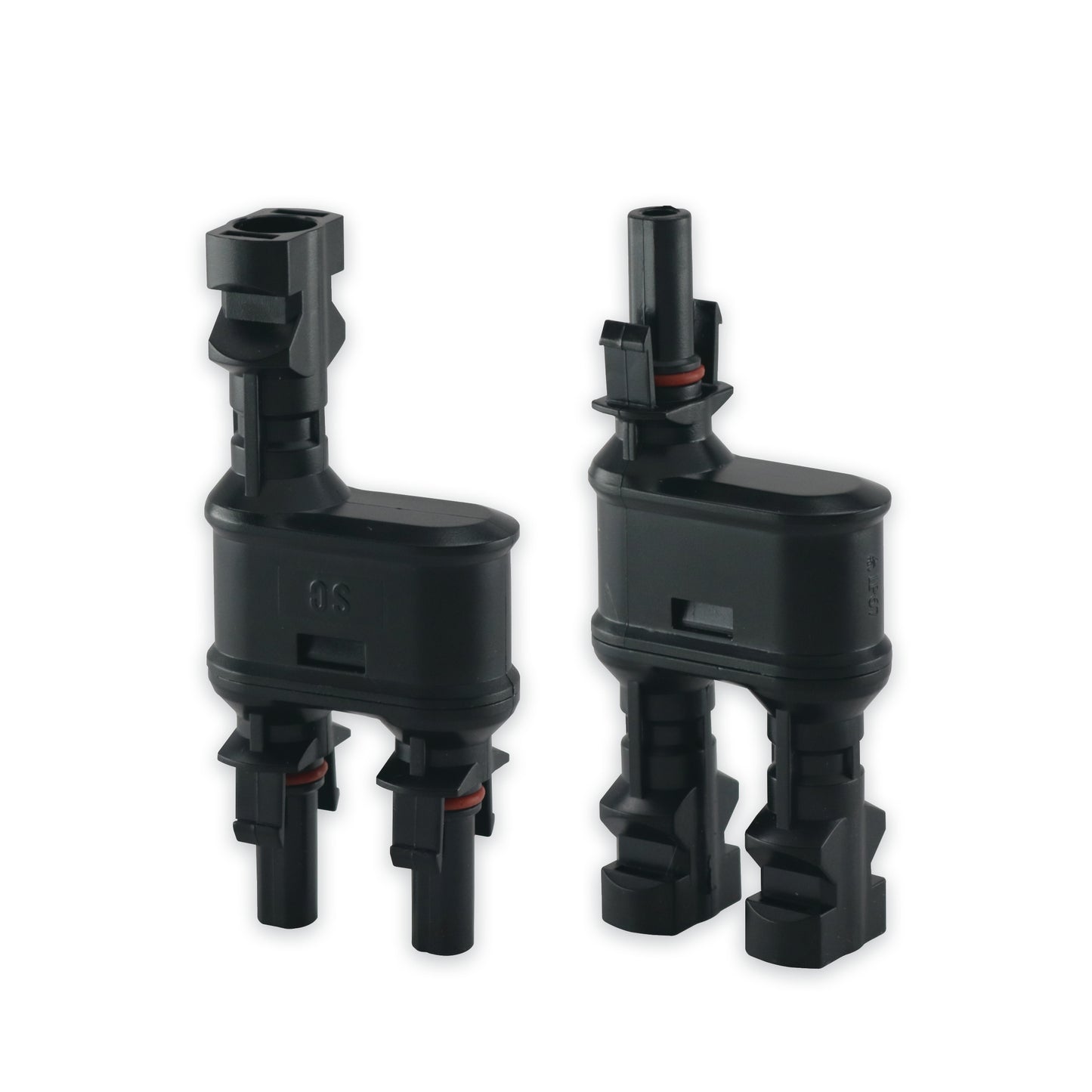

Solar Panel Branch Connector Pair

SKU
MC4-BRANCH
$6.83
0.13 lbs
OR
Description

Connect two solar panels in parallel using our solar panel branch connectors.

Features:

  • Used for making safe connections for wiring solar panels in series or parallel
  • UV Resistant
  • Acc to DIN V VDE V 0126-3/12.06
  • UL 1703 standard

Technical Specifications:

  • Rated Current: 30 Amps
  • Withstanding Voltage: 1000 Volts; 600 Volts UL
  • Contact Resistance: 1 meter
  • Protection Class: Class II
  • Temperature Range: -40°C~+85°C / -40°F~185°F
  • Protection Degree: IP2x Unmated; IP67 Mated
  • Wire Size Range: 2.5 mm² / 4 mm² / 6 mm (14 AWG, 12 AWG, 10 AWG)
  • Unmating Force: 200 Newton
  • Insulation Material: PC/PA
  • Contact Material: Copper, Tin Plated
  • Flame Class: UL94-VO or UL94-5VA

Advantages:

  • Simple, quick, safe and effective assembly
  • High mechanical endurance
  • High current and voltage capacity
  • Low transition resistance
  • Innovative sealed waterproof and dust resistant design
  • UL 94-V0
  • UV resistant
  • Wide temperature range
  • Approved by TUV

MC4 T Branch Connector Solar Panel Parallel Wiring Diagram
