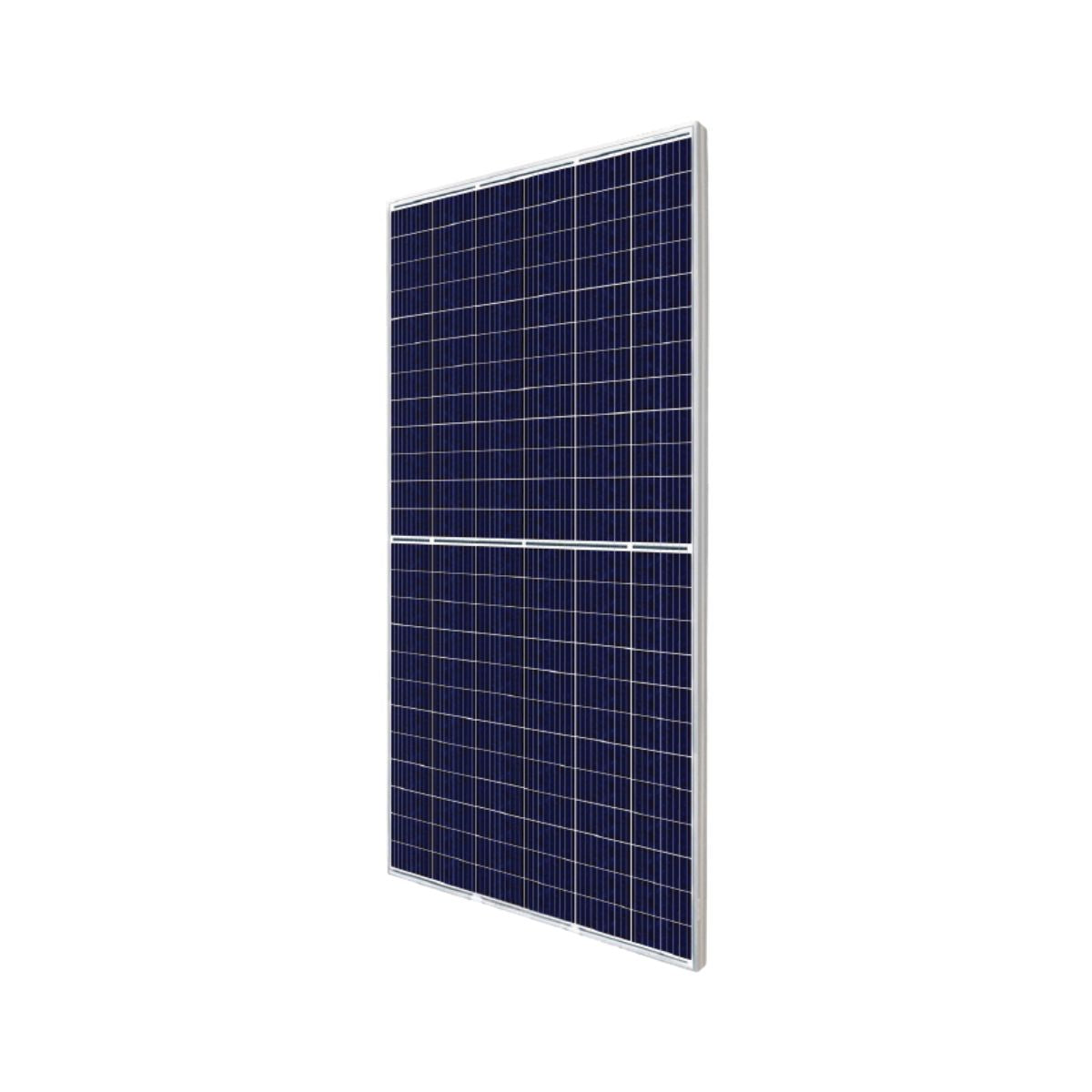

Canadian Solar 390 Watt Bifacial Polycrystalline Solar Panel
Canadian Solar 390 Watt Bifacial Polycrystalline Solar Panel
Regular price
$99.99
Regular price
$119.99
Sale price
$99.99
Unit price
per
SKU: CS3W-390PB-AG
Weight: 62.6 lb
Couldn't load pickup availability
- description
Canadian Solar 390 Watt 144 Half-Cut Bifacial Solar Panel
| Cell Orientation: 144 (2x (12x6)) |
| Output Cable with Connectors: 400 mm (15.7 in) length |
| Operational Temperature: -40°C ~+85°C |
| Power Output Tolerance: 0~+5W |
| Nominal Operating Cell Temperature: 45 ± 2°C |
| Maximum System Voltage: DC1500V (IEC/UL) |
| Max Series Fuse Rating: 25 A |
Electrical Characteristics STC
| Maximum Power (Pmax) | 390 Watts |
| Maximum Power Current (Imp) | 10.19 A |
| Maximum Power Voltage (Vmp) | 38.3 V |
| Short Circuit Current (Isc) | 10.74 A |
| Open Circuit Voltage (Voc) | 46.8 V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m2,Cell Temperature 25°C
Mechanical Characteristics
| Cell Type | Poly-crystalline |
| Front / Back Glass | 2.0 mm heat strengthened glass |
| Frame | Anodized Aluminum Alloy |
| Dimensions (in) | 83.9 x 41.3 x 1.2 inches / 2132 x 1048 x 30 mm |
| Weight (lbs) | 62.6 lbs / 28.4 kg |
| Surface Maximum Load Capacity | 5400 pa |
