IMO SI32-PEL64R-4 Enclosed DC Switch IP67 Nema 4X
IMO SI32-PEL64R-4 Enclosed DC Switch IP67 Nema 4X
Regular price
$89.65
Regular price
Sale price
$89.65
Unit price
per
SKU: SI32-PEL64R-4
Weight: 1.2 lb
Couldn't load pickup availability
- description

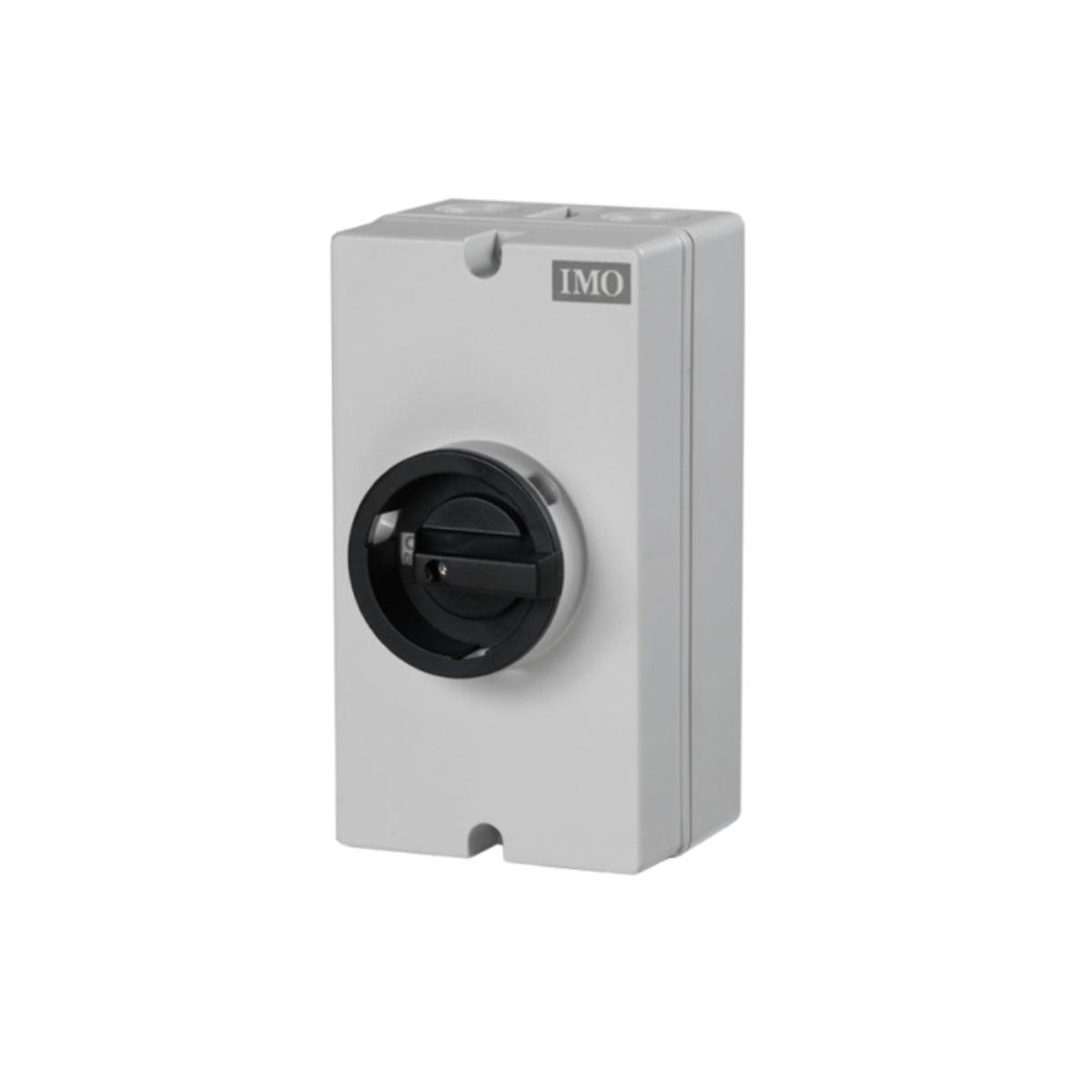

IMO SI32-PEL64R-4 True DC Solar Isolator
- Enclosed DC Switch IP67 Nema 4X
- 4 Pole 2 String 32A 700VDC
- Lockable Rotary Handle
| Handle Type | Lockable Rotary Handle |
| Nema Rating | 4X |
| Mounting | Enclosed |
| Temperature Range °C | -40 to +45°C |
| IP Rating | IP67 |
| Rated Current (A) | 32A |
| Lockable | Yes |
| Number of Strings |
2 |
| UL Current Rating (A) | 32 |
| Number of Poles | 4P |
| Cable Sizes (AWG) | 12-10AWG |
| Cable Size (mm²) | 4-16mm² |
