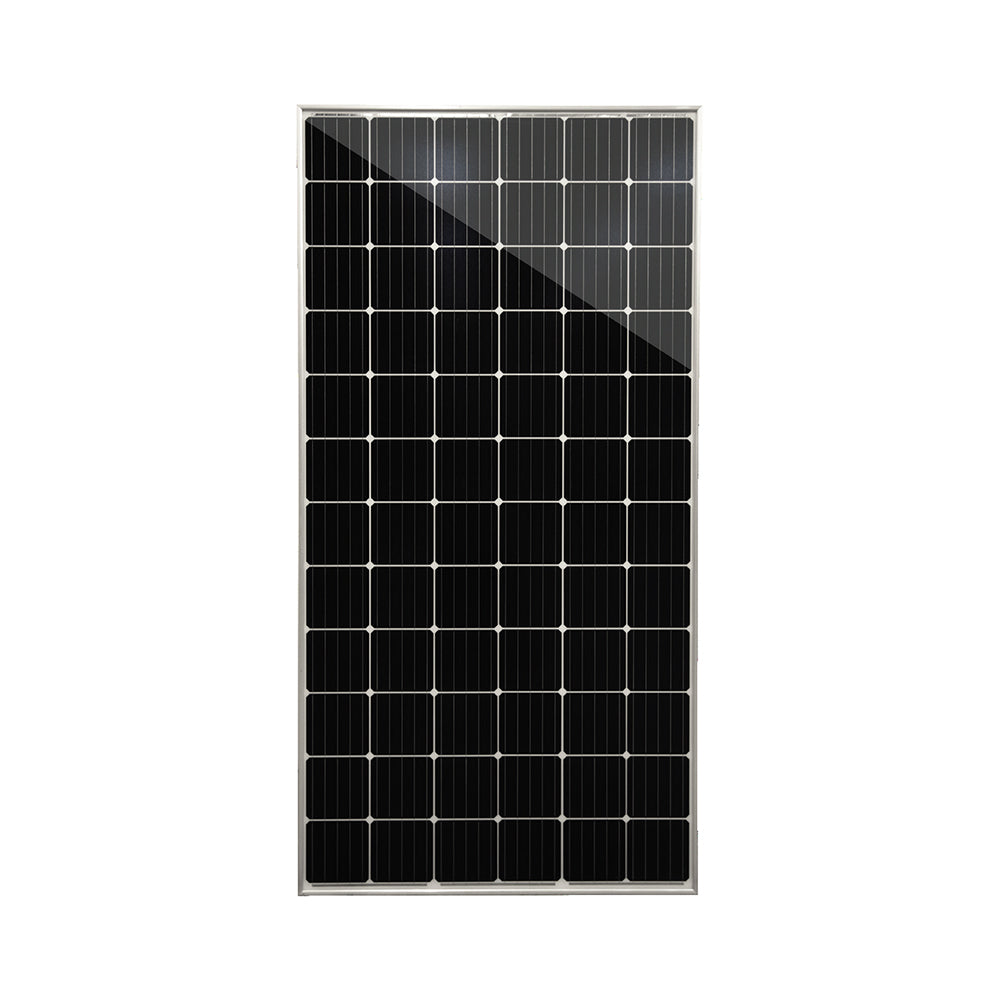

Mission Solar Energy 385W 72 Cell

Mission Solar Energy 385W 72 Cell

$300.00
$300.00
Sale Sold out

SKU: MSE385SR9S

Weight: 42.0 lb

View full details
Features:
  • Tested to UL1703 & IEC standards
  • PERC and 5 busbar drive >19.3% module efficiency
  • 5631 Pa front and back load (117 psf) tested load to UL1703
  • Buy American Act
  • American Recovery & Reinvestment Act

Mechanical Data & Components

Module Technology

Mono
Cells per Module

72
Module Frame Material

Clear Aluminum
Module Frame Thickness

35mm
Module Backsheet Material

White
Module Connector

MC4
Module Output Cables

PV Wire

Electrical Characteristics

Module Watts STC

385 Watts
Max Power Voltage (Vmpp)

40.84 Volts
Max Power Current (Impp)

9.43 Amps
Open Circuit Voltage (Voc)

48.53 Volts
Short Circuit Current (Isc)

9.99 Amps
Max System Voltage

1500.00 Volts
Series Fuse Rating

20 Amps
Module Efficiency

19.11%
Temp Coefficient (Pmpp)

-0.38%
Temp Coefficient (Voc)

-0.28%
Fire Classification (Type)

1
