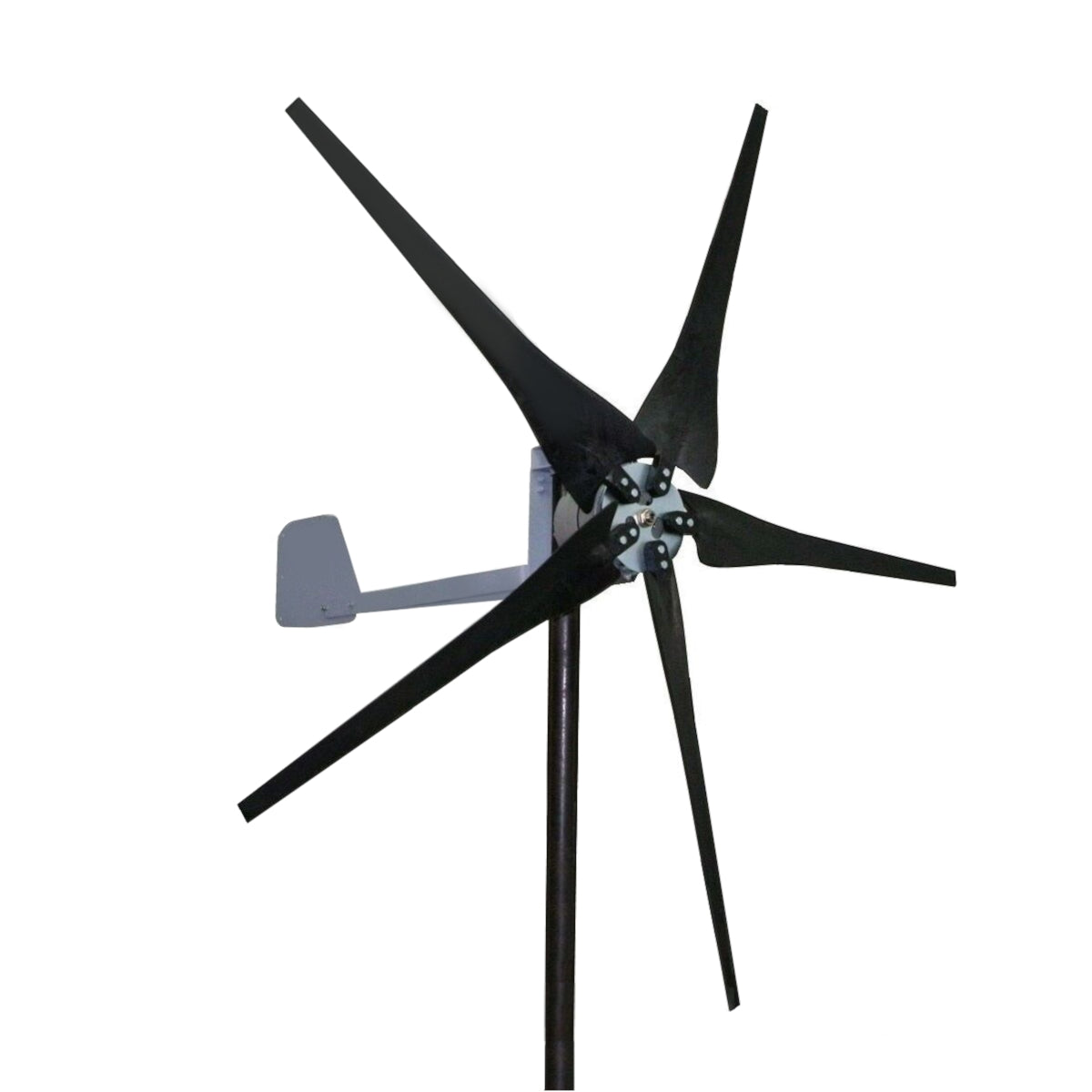

Raptor G4 5 Blade 500 Watt Basic Wind Turbine

SKU
500W-BSC-5B
$299.79
OR
Description

Tail Design for Higher Winds & Faster Tracking - ULTRA HIGH SPEED RAPTOR GENERATION 4 WIND TURBINE BLADES

Assembled in the USA by Missouri Wind and Solar

6mph with 5 and 7 blade.

Uses: Battery or battery bank charging, stackable wind turbine grid tie inverters, direct DC water heating elements, direct DC resistive heating, or other applications where 3 phase AC or DC can be used.

What you get with the 500 Watt Wind Turbine:

  • 5, or 7 Raptor Generation 4 Wind Turbine Blades for maximum output
    • Assembled blades are 60" diameter
    • Blades do not overload the PMA at low RPMs, turns faster for more amps
  • Wind Turbine Blade Hub
    • 3/16'' thick steel, no cheap aluminum or plastic
    • Zinc Plated or Powder Coated
  • 500 Watt Permanent Magnet Alternator
    • Standard 17 mm shaft
    • 100% solid core zinc plated rotor design with air flow holes for cooler operation
    • Smoother operation with flywheel power boost
    • Housing bolts treated with anti-seize to prevent dissimilar metal corrosion
    • Above 500 watts if you have zone 2 winds or above; power rated when using Raptor G4 blades. Easy start-up in zone 2 winds or higher depending on blade set.
    • 125,000 hours+ of rated bearing life. New bearings cost only $5.00
    • AC Output Models: The 3 phase AC to DC bridge rectifier can be installed next to your batteries or inverter for a 3 phase cable run down the tower.
    • DC Output Models: The 3 phase AC to DC bridge rectifier is built into the case making it a two wire run to your charge controller or batteries.
  • Tail Fin & Arms
    • 16 gauge powder coated steel
    • Measures 13 x 19 Inches
    • Double tail arms
  • Steel mounting bracket
    • Fits on 1.5" schedule #40 or #80 pipe
    • Powder coated
  • Limited Warranty
