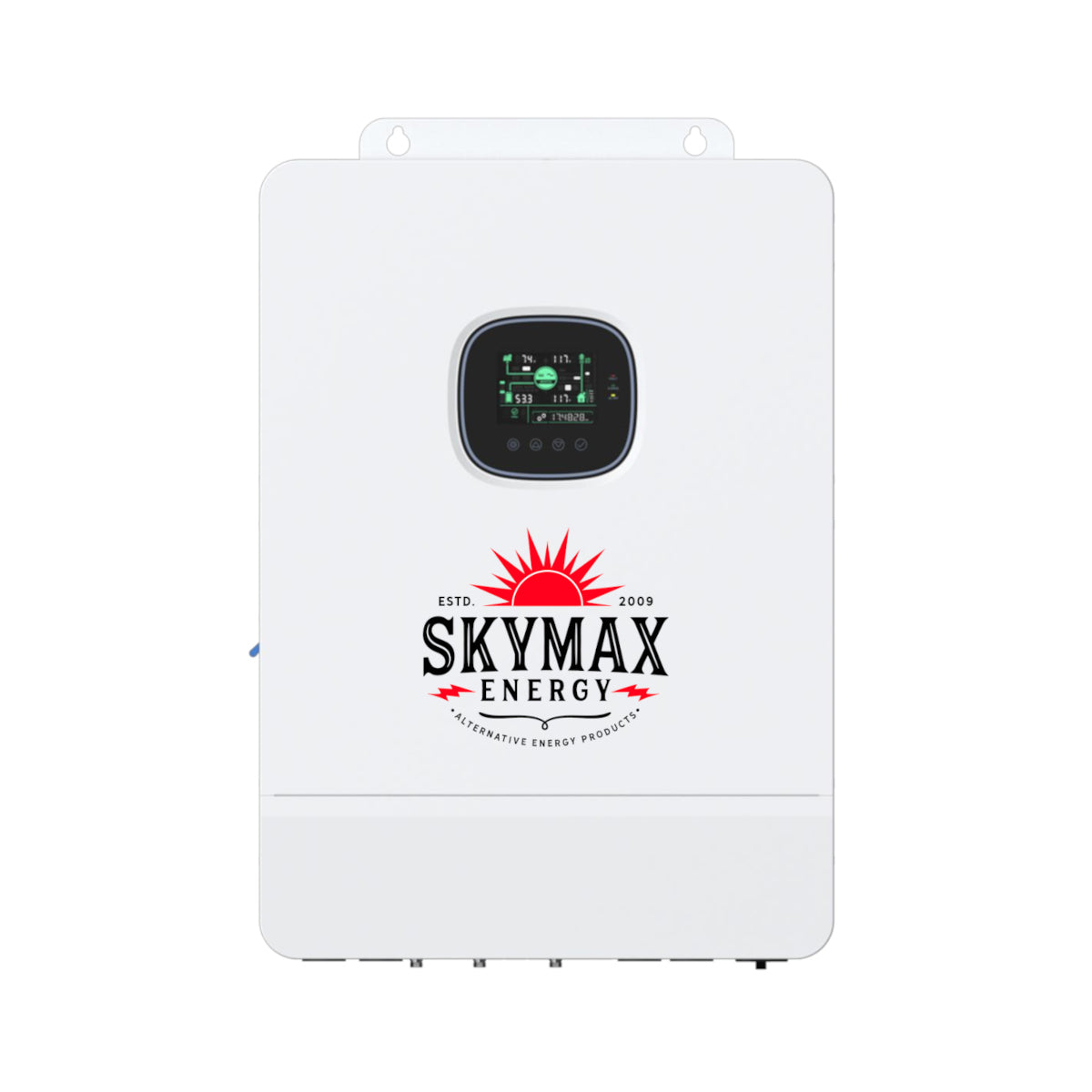

SkyMax Stratus 3 Split Phase Inverter

SKU
SMAX-STRATUS3-48-10K
$2,499.00
OR
Description

SkyMAX Stratus 3 Split Phase Inverter for Grid-Tie and Off-Grid Applications

The SkyMax Stratus 3 Inverter is conpatible with 48 volt battery banks and supports both lead acid and lithium ion battery types. The inverter supports split-phase and single-phase pure sine wave output and has two solar inputs and simultaneous tracking with dual MPPT capacity at 99.9% efficiency and four charging modes: solar only, grid charging priority, solar priority and mixed grid/PV charging.

With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of grid charging and switch the time period between battery discharging and grid-tie bypass power supply mode.

The SkyMax Stratus 3 has an energy saving mode function to reduce no-load energy losses. It has two output modes: utility bypass and inverter output, with uninterrupted power supply function. It also has a large LCD screen with dynamic flow diagram design, making it easy to understand the system data and operation status.

The SkyMax Stratus 3 has 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc. It is designed for indoor use only (IP20). The SkyMax Stratus 3 has optional Wifi and is RoHS, EMC, EIC and UL1741 Certified.

The SkyMax Stratus 3 is a great choice for anyone looking for a powerful and versatile inverter. It's perfect for both residential and commercial applications.

Inverter Specifications

Rated Output Power 10,000W
Max Peak Power 20,000W
Rated Output Voltage 120/240Vac(L1/L2/N/PE split phase)
Load Capacity of Motors 6HP
Rated AC Frequency 50/60Hz
Waveform Pure Sine Wave
Switch Time 10ms (typical
Battery
Battery Type Li-ion / Lead-Acid / User Defined
Rated Battery Voltage 48 VDC
Voltage Range 40-60 VDC
Max MPPT Charging Current 200 Amps
Max Mains / Generator Charging Current 120 Amps
Max Hybrid Charging Current 200 Amps
PV Input
Num. of MPPT Trackers 2
Max PV Array Power 11,000 Watts (5500W + 5500W)
Max Input Current 22 + 22 Amps
Max Open Circuit Voltage 500 VDC
MPPT Voltage Range 125-425 VDC
Efficiency
MPPT Tracking Efficiency 99.9%
Max Battery Inverter Efficiency 92%
Mechanical
Dimensions 24.4 x 17.1 x 5.1 in / 620 x 435 x 130 mm
Weight 46.3 lb / 21 kg
Protection IP20 (Indoor Only)
Operating Temperature Range ~131℉>113℉
Manufacturer Warranty 2 Years
Certification
Safety IEC62109-1, IEC62109-2,UL1741
EMC EN61000-6-1, EN61000-6-3, FCC 15 Class B
RoHS Yes
