Triple 100 Watt Solar Panel Top of Pole Mounting Rack

Write a Review

SKU:: POLE-300W
UPC:
MPN:

$377.49 - $401.49

Current Stock:

Quantity:

Description
0 Reviews

Description

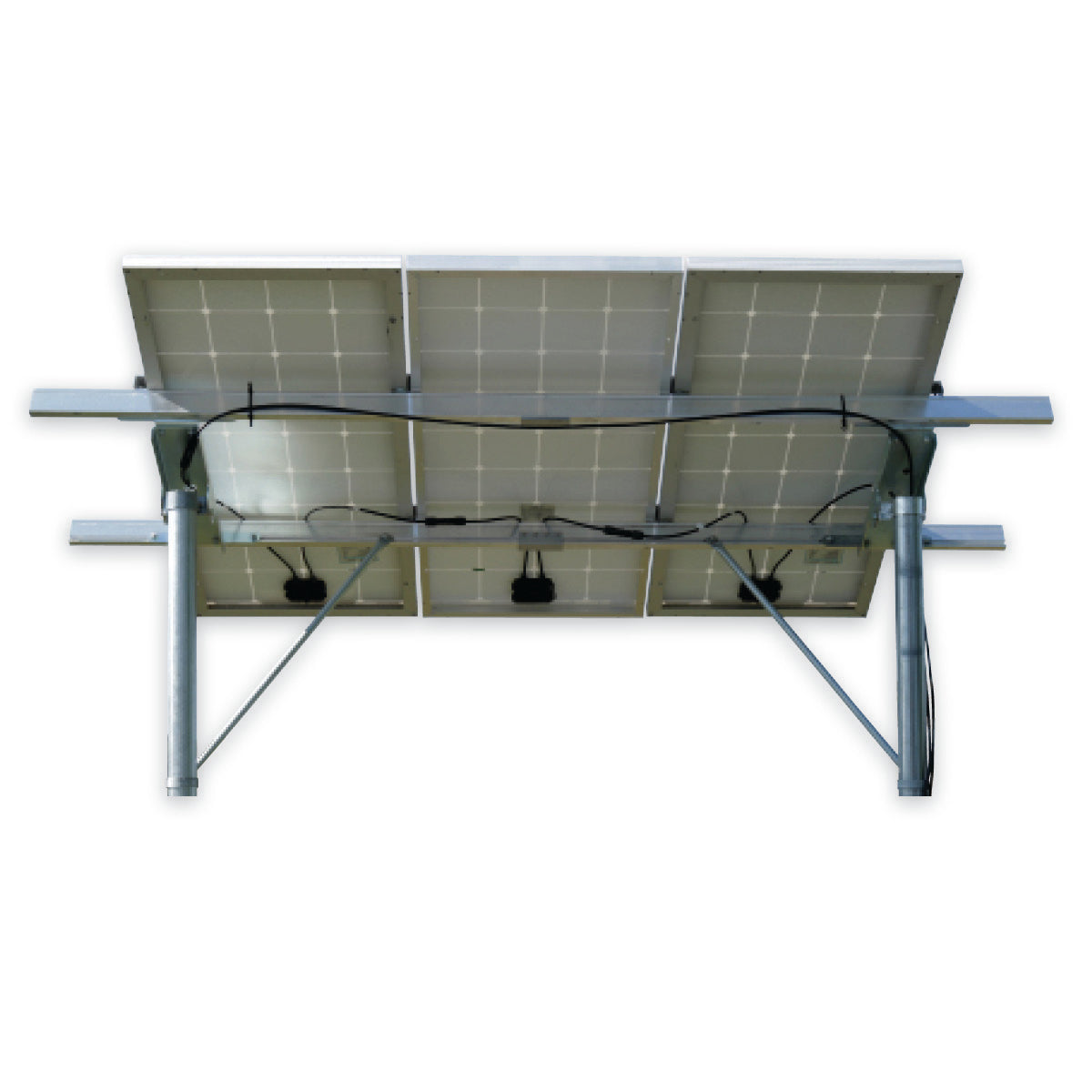

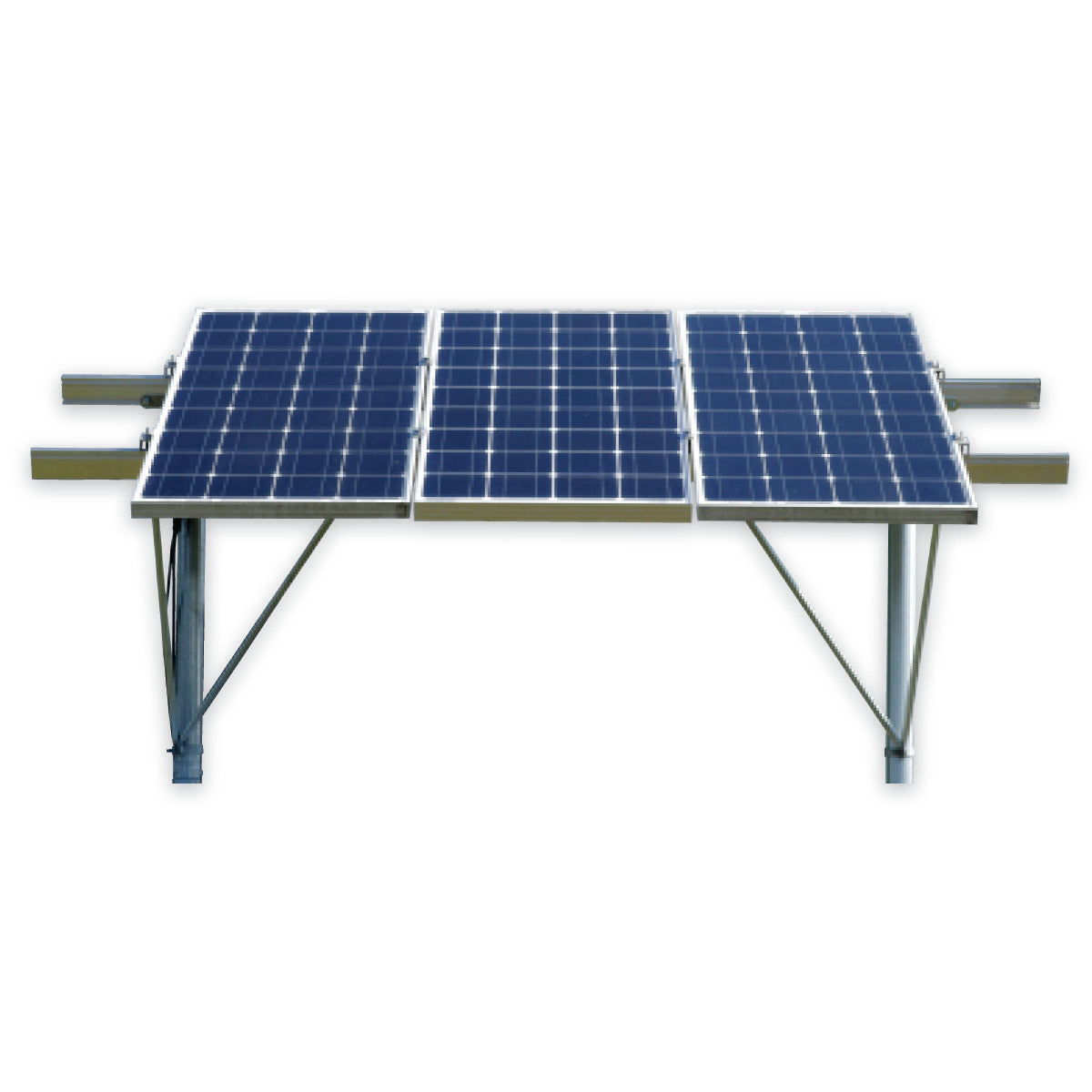

Holds three 100 watt solar panels (not included).

Our top of pole solar panel mount features an adjustable pitch angle to sun as well as side to side to get the best angle on your solar panels year round! The convenient design allows you to easily maintain, adjust, and clean your solar panels without having to climb a ladder.

Support bands fit a 2" metal pipe (not included). Let us know the width of your solar panel frame in the comments at checkout so we can send the correct end clamps!

Solar panel mounting kit includes:

(2) SolarMount Short
(4) SolarMount End
(2) Support Arm 1/2" x 24" EMT
(2) Support Arm 1/2" x 30" EMT
(4) Sections UniRac Rail (14' 4" of rail total)
(2) UniRac SolarMount Splice Bars
(2) 2-3/8" Brace band (fits 2" metal pipe)
(2) 2-3/8" Pipe grip tie (fits 2" metal pipe)
(24) 3/8" Bolt and lock nut*
(4) end clamp
(4) mid clamp

END CLAMP OPTIONS

B End Clamp	D End Clamp	E End Clamp	F End Clamp	K End Clamp	AF Universal End Clamp
Fits 30 mm to 32 mm (1.18 to 1.26") module thickness	Fits 38 mm to 40 mm (1.50 to 1.57") module thickness	Fits 50 mm to 51 mm (1.97 to 2.00") module thickness	Fits 45 mm to 47 mm (1.77 to 1.85") module thickness	Fits 39 mm to 41 mm (1.54 to 1.61") module thickness	Fits 30 mm to 46 mm (1.18 to 1.81") module thickness

* YouTube video shows locking washers. These are no longer included as they have been replaced with lock nuts.

Specifications:

Product Weight: 30.4 lbs
Assembled Dimensions: 7.2' x 32" x 21"

Documents:

Product Assembly Manual

Please allow space for mid clamps in the center and end clamps on the outside. If you are unsure if your solar panels will fit this rack, please contact us.

100 percent made in the USA.
