90 Amp 1000 Volt 3-Phase Bridge Rectifier Kit

For Permanent Magnet Alternator (PMA) & Permanent Magnet Generator (PMG) Wind Turbines

Rectifier Features:

• A must for high Amp output wind turbines. Continuous duty, will accept large cable.
• Replace the original auto type rectifier with this one!
• This is the highest amperage on the market today - and only by Missouri Wind and Solar, the leader in do-it-yourself wind and solar.
• Good cooling capabilities, can handle 90 Amps continuously using air cooling, no fan required.
• Works on all AC output wind turbines that produce 90 Amps or less
• Use self-tapping screws or the spade terminals to connect your wires

Rectifier Specifications:

• Operating range is 0 to 1000 Volts
• Two mounting holes for easy securing

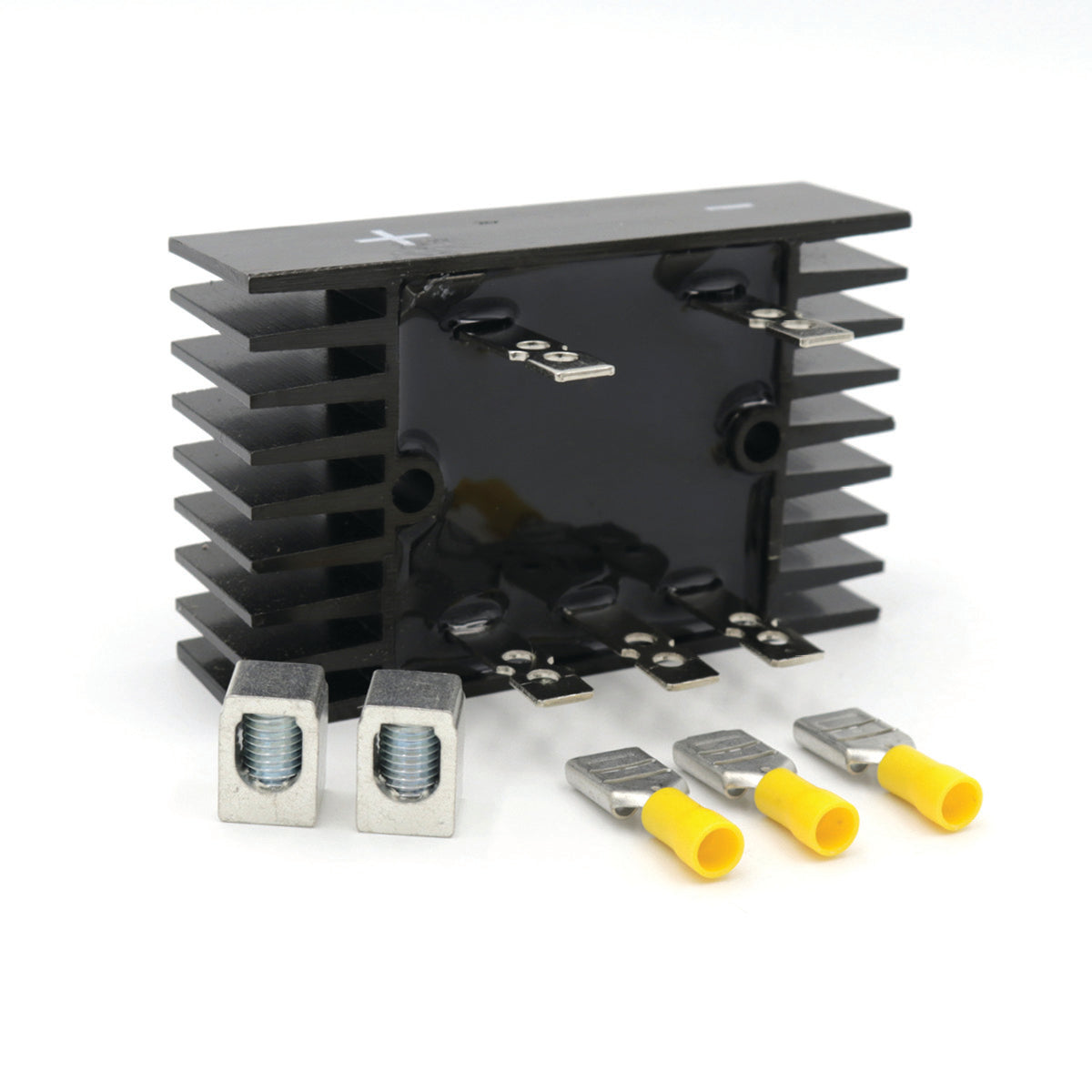

Kit Contains:

• 1 - 90 amp, 1000 volt Rectifier
• 3 - 3/8" Spade Terminals
• 2 - 2 AWG Box Collar Lugs

Dimensions: 3 7/8" long x 2 3/8" wide x 1 1/8" thick

Click here for 3-Phase rectifier wiring tips
