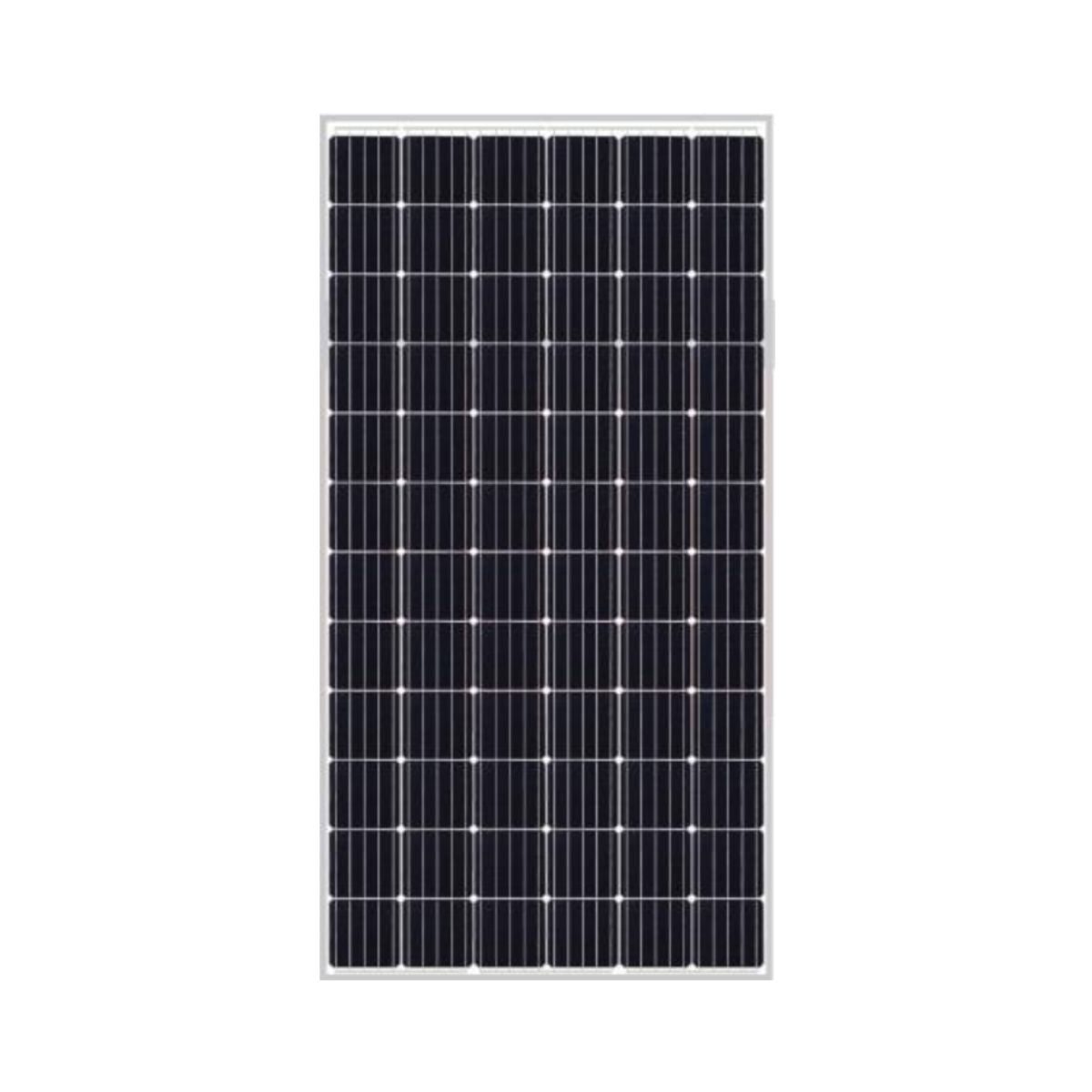

Allesun 380 Watt Monocrystalline Solar Panel
Allesun 380 Watt Monocrystalline Solar Panel
Regular price
$119.00
Regular price
Sale price
$119.00
Unit price
per
SKU: ALLESUN-380-72M
Weight: 49.0 lb
Couldn't load pickup availability
- description
Allesun 380 Watt Monocrystalline Solar Panel
- 10 year limited 90% power output warranty
- 25 year limited 80% power output warranty
| Cell Orientation: 72 (6x12) |
| Output Cable: 1100mm (43.3 in) length |
| Operational Temperature: -40°C ~+86°C |
| Power Output Tolerance: 0~+2W |
| Nominal Operating Cell Temperature: 45 ± 2°C |
| Maximum System Voltage: DC1500V (IEC/UL) |
Electrical Characteristcs STC
| Maximum Power (Pmax) | 380 Watts |
| Module Efficiency | 19.5% |
| Maximum Power Current (Imp) | 9.46 A |
| Maximum Power Voltage (Vmp) | 40.2 V |
| Short Circuit Current (Isc) | 9.94 A |
| Open Circuit Voltage (Voc) | 48 V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m2,Cell Temperature 25°C
Mechanical Characteristics
| Cell Type | Monocrystalline |
| Glass | 3.2 mm coated tempered glass |
| Frame | Anodized Aluminum Alloy |
| Number of Cells | 72 (6 x 12) |
| Cell Size | 156.75 x 156.75 mm (6 inches) |
| Dimensions (in) | 77 x 39.06 x 1.57 inches / 1956 x 992 x 40 mm |
| Weight (lbs) | 48.72 lbs / 22.1 kg |
| Allowable Hail Load | 227g steel ball dropped from 1m height |
| Surface Maximum Load Capacity | 5400pa |
