Busbar Combiner Box

The safest and easiest way to connect your wind turbine generator or solar panels in one box.

Weathertight box for indoors or out.

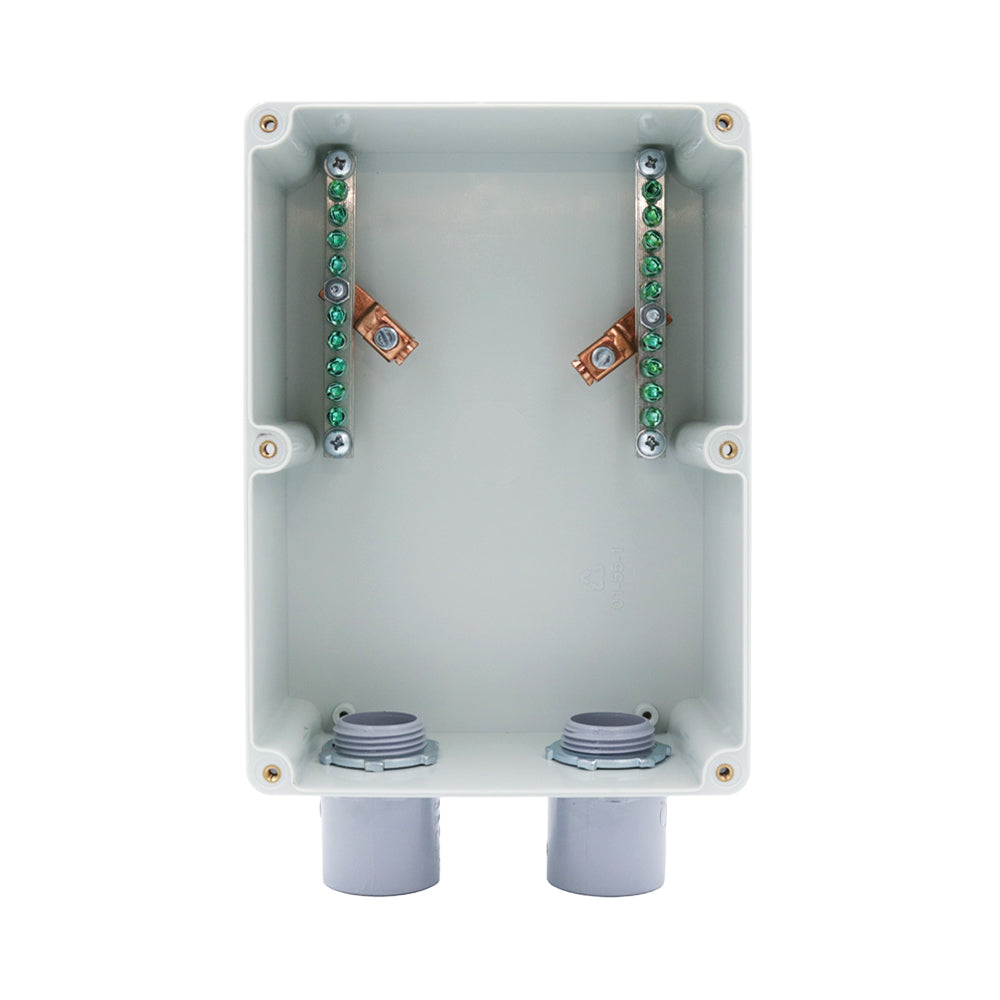

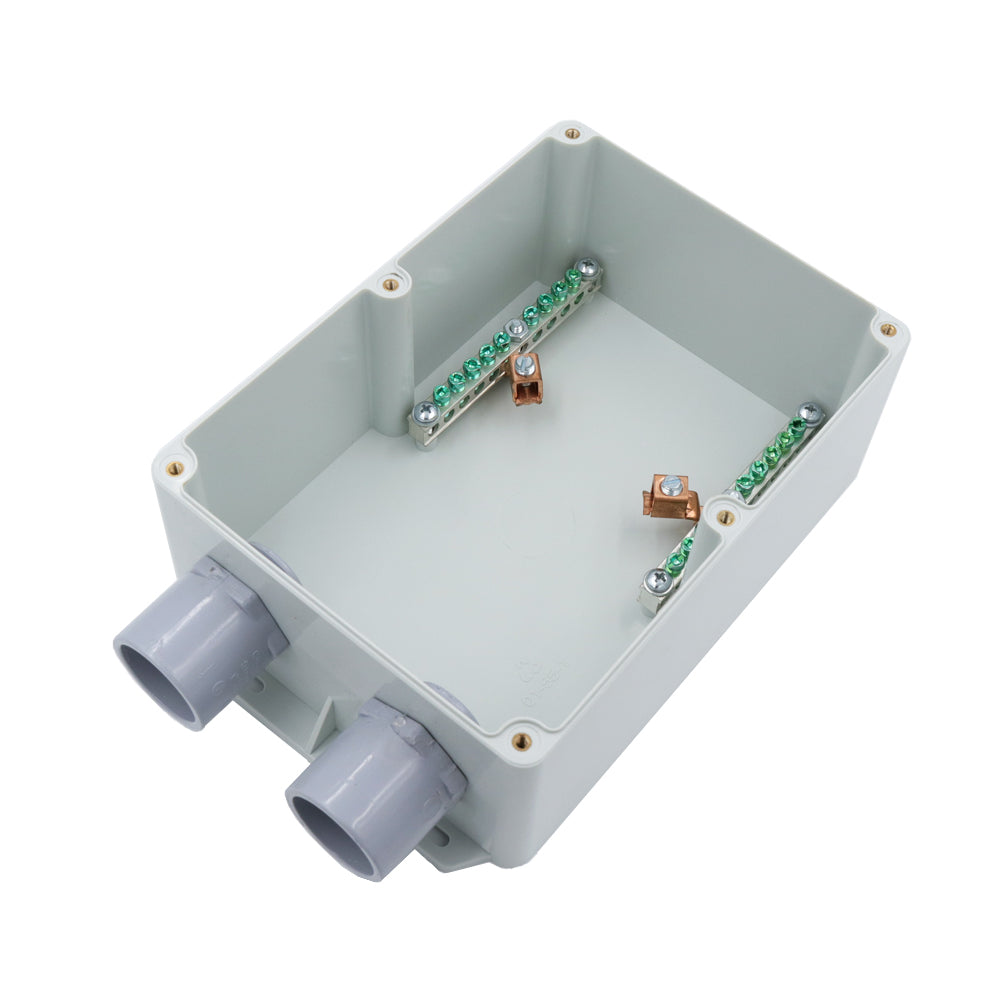

Contains two 4 inch busbars with lugs on each. Each buss bar holds up to #4 awg (21.2 mm²) wire. For larger wire sizes split the end of the wire up between several holes and tighten. Lugs hold up to #2 awg (32 mm²) wire.

Two 1" grey PVC conduit fittings installed

• Compatible with Sch. 40 and Sch. 80 rigid non-metallic conduit (RNC)
• For use in above ground and underground applications as well as exposed outdoor usage
• Durable PVC construction means no rusting or corroding
• Weighing less than metallic systems means more efficient and quicker installation time
• UL listed

Overall box dimensions:

• 6" high x 6" wide x 4" deep
