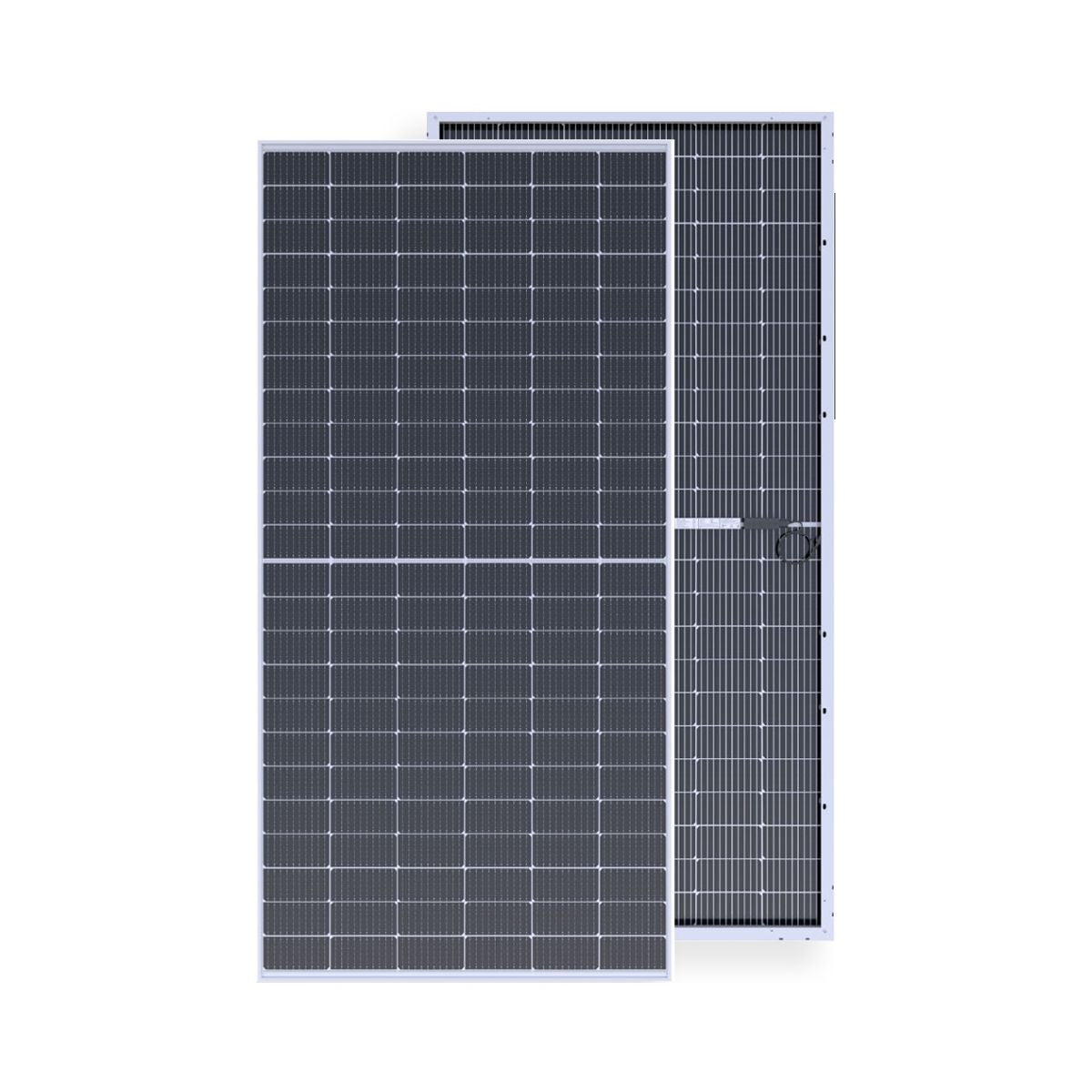

Boviet Vega Series 540W 144 Half-Cut Bifacial Mono Perc Cell
Boviet Vega Series 540W 144 Half-Cut Bifacial Mono Perc Cell
Regular price
$164.99
Regular price
Sale price
$164.99
Unit price
per
SKU: BVT-540W
Weight: 73.86 lb
Couldn't load pickup availability
- description
Boviet Vega Series 540W 144 Half-Cut Bifacial Mono Perc Cell
| Cell Orientation: 182 mm Cell I Half-cut I 10 Busbar I 144 (6x24) pcs in series |
| Output Cable with Connectors: 4mm² (EU) I 12 AWG (US) 39.38 inch |
| Operational Temperature: -40°F~185°F |
| Power Output Tolerance: 0~+5W |
| Nominal Operating Cell Temperature: 45 ± 3°C |
| Maximum System Voltage: 1500 V (IEC/UL) or 1000 V (IEC/UL |
| Max Series Fuse Rating: 30 A |
Electrical Characteristics STC
| Maximum Power (Pmax) | 540 Watts |
| Maximum Power Current (Imp) | 12.76 A |
| Maximum Power Voltage (Vmp) | 42.40 V |
| Short Circuit Current (Isc) | 13.55 A |
| Open Circuit Voltage (Voc) | 49.89 V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m2,Cell Temperature 25°C
Mechanical Characteristics
| Cell Type | Mono-crystalline |
| Front / Back Glass | 2.0 mm (0.079 inch) High transparency, low iron, AR Coated tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Dimensions (in) | (90.4 x 44.65 x 1.38 in) |
| Weight (lbs) | 73.86 |
| Surface Maximum Load Capacity | 5400 pa |
