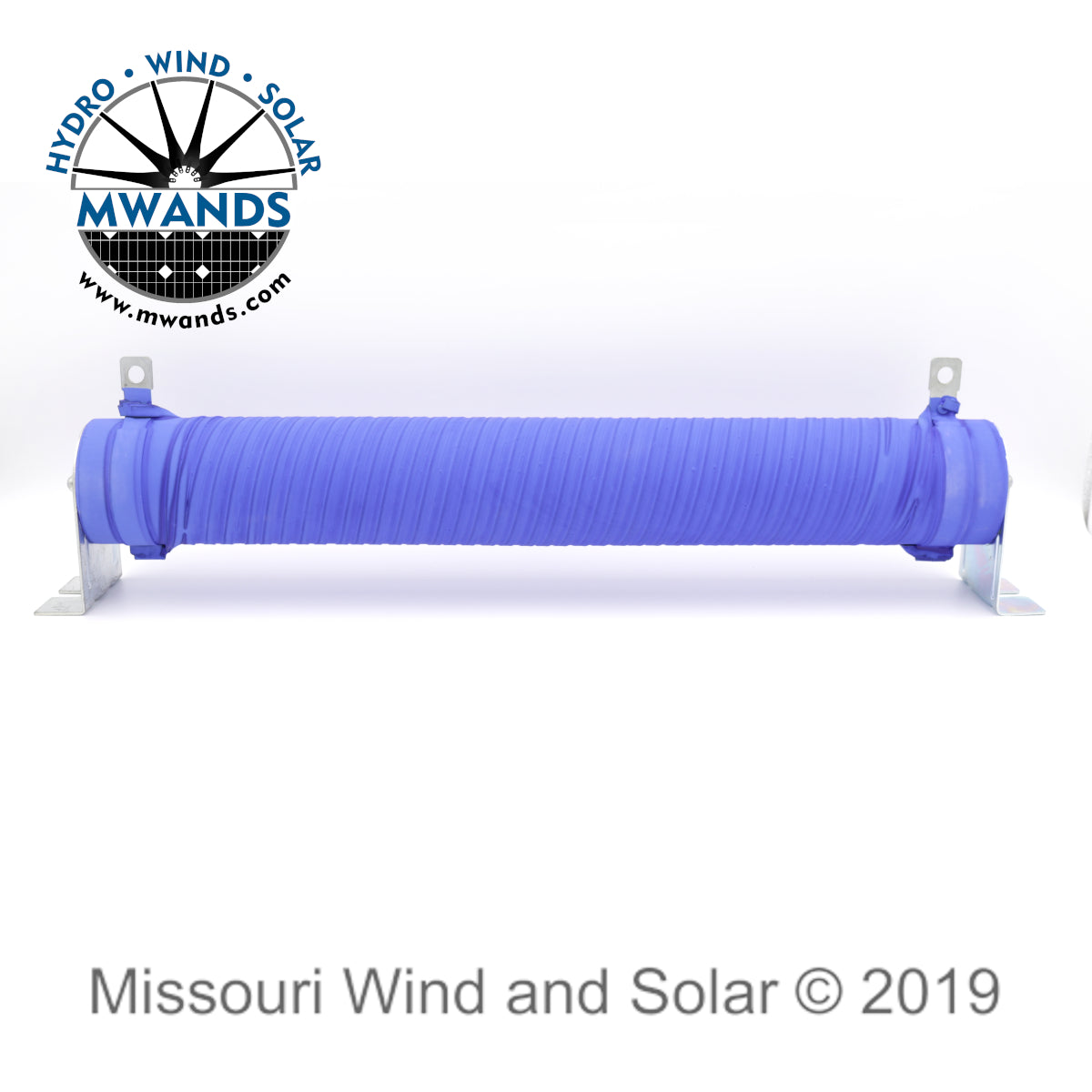

1000 Watt Dump Load Resistor | Blemished

This divert load resistor is for use to divert the excess power being generated when your wind turbine generator batteries are full and can be ran at 100% duty cycle due to the quality double wire wound design. It can also be used with a solar array in diversion mode.

The unit can be used alone to provide free heat as well by hooking your solar panels directly to it. For an alternative dump load see our DC water heating elements.

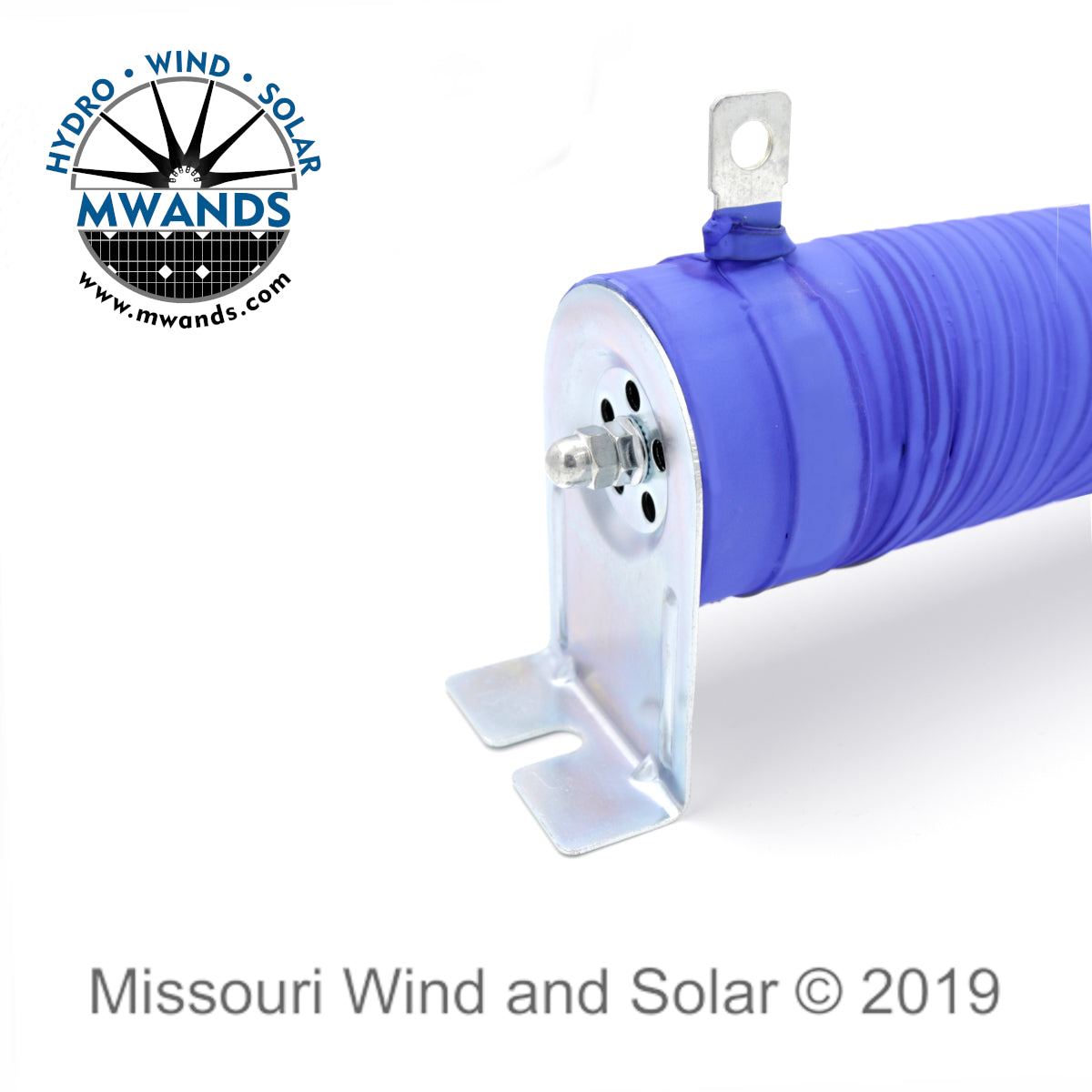

The mounting "L" feet are reversible by simply loosening two mounting nuts and reversing them allowing for a wider variety of mounting options.

Dimensions:

• Resistor Length: 13 inches
• Bracket and resistor Length: 15.25 inches

Specifications:

• Nominal Voltage: 12 Volts
• Resistance: 1000 Watts
• Ohms: 0.2
• Produces 720 watts at 12 volts
• Produces 1036 watts at 14.4 volts

Remaining inventory may have minor scuffs or marks that are cosmetic and do not affect performance.
