Grape Solar 370 Watt Solar Panel
Grape Solar 370 Watt Solar Panel
Regular price
$185.00
Regular price
$224.99
Sale price
$185.00
Unit price
per
SKU: GRAPE-370
Weight: 43.0 lb
Couldn't load pickup availability
- description

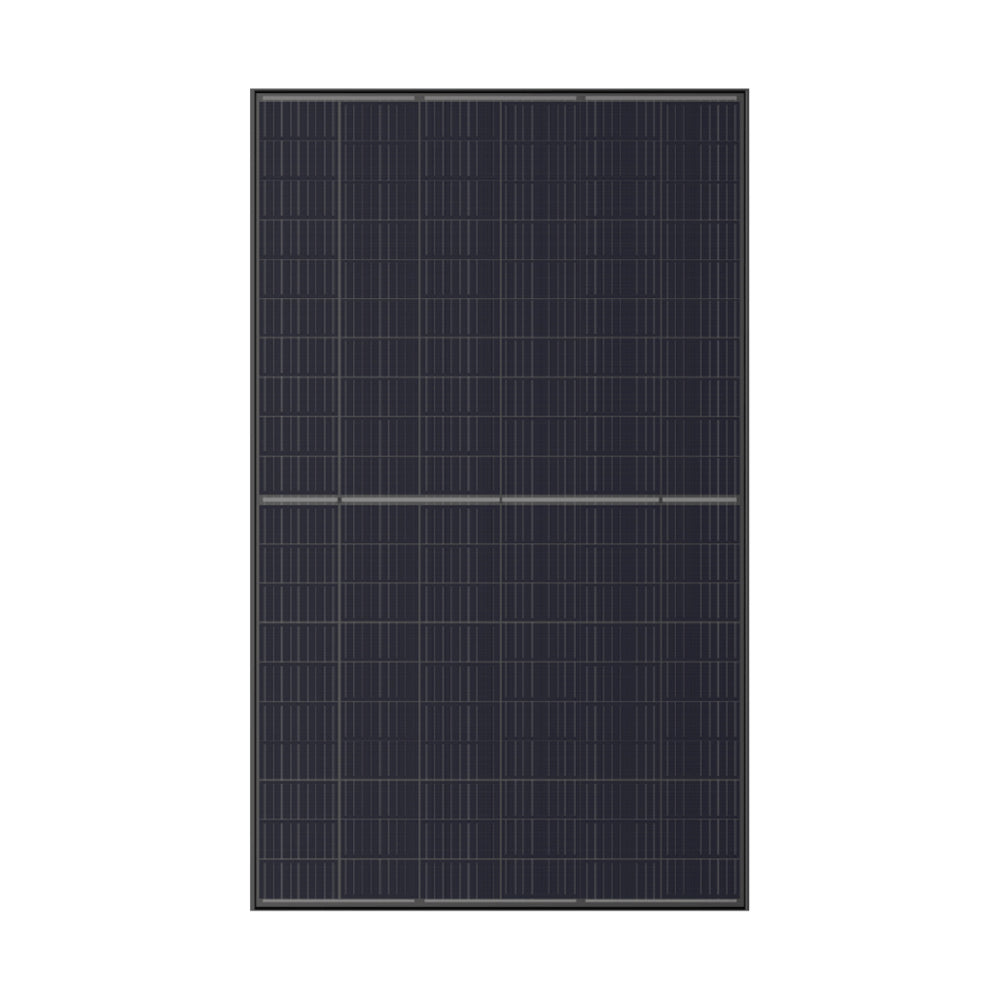

Grape 370 Watt Monocrystalline Solar Panel
- 10 year limited product warranty
- 10 year limited 90% power output warranty
- 25 year limited 80% power output warranty
| Cell Orientation: 120 (6x20) | Safety Class: Class II |
| Output Cable: 1200mm (47.24 in) length | Fire Rating: UL Type 1 or 2 |
| Operational Temperature: -40°C ~+85°C | VOC and ISC Tolerance |
| Power Output Tolerance: 0~+5W | Maximum System Voltage: DC1500V (IEC/UL) |
| Nominal Operating Cell Temperature: 45 ± 2°C | Maximum Series Fuse Rating: 20A |
Electrical Characteristcs STC
| Maximum Power (Pmax) | 370 Watts |
| Module Efficiency | 19.8% |
| Maximum Power Current (Imp) | 10.82 A |
| Maximum Power Voltage (Vmp) | 34.2 V |
| Short Circuit Current (Isc) | 11.42 A |
| Open Circuit Voltage (Voc) | 41 V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m2,Cell Temperature 25°C
Mechanical Characteristics
| Cell Type | Monocrystalline |
| Glass | 3.2 mm coated tempered glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Dimensions (in) | 69.09 x 40.87 x 1.38 inches / 1755 x 1038 x 35 mm |
| Weight (lbs) | 40.19 lbs / 20.5 kg |
Panel Certifications:
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2008: ISO Quality Management System
- ISO 14001:2004: ISO Environment Management System
Panel Data Sheet:
