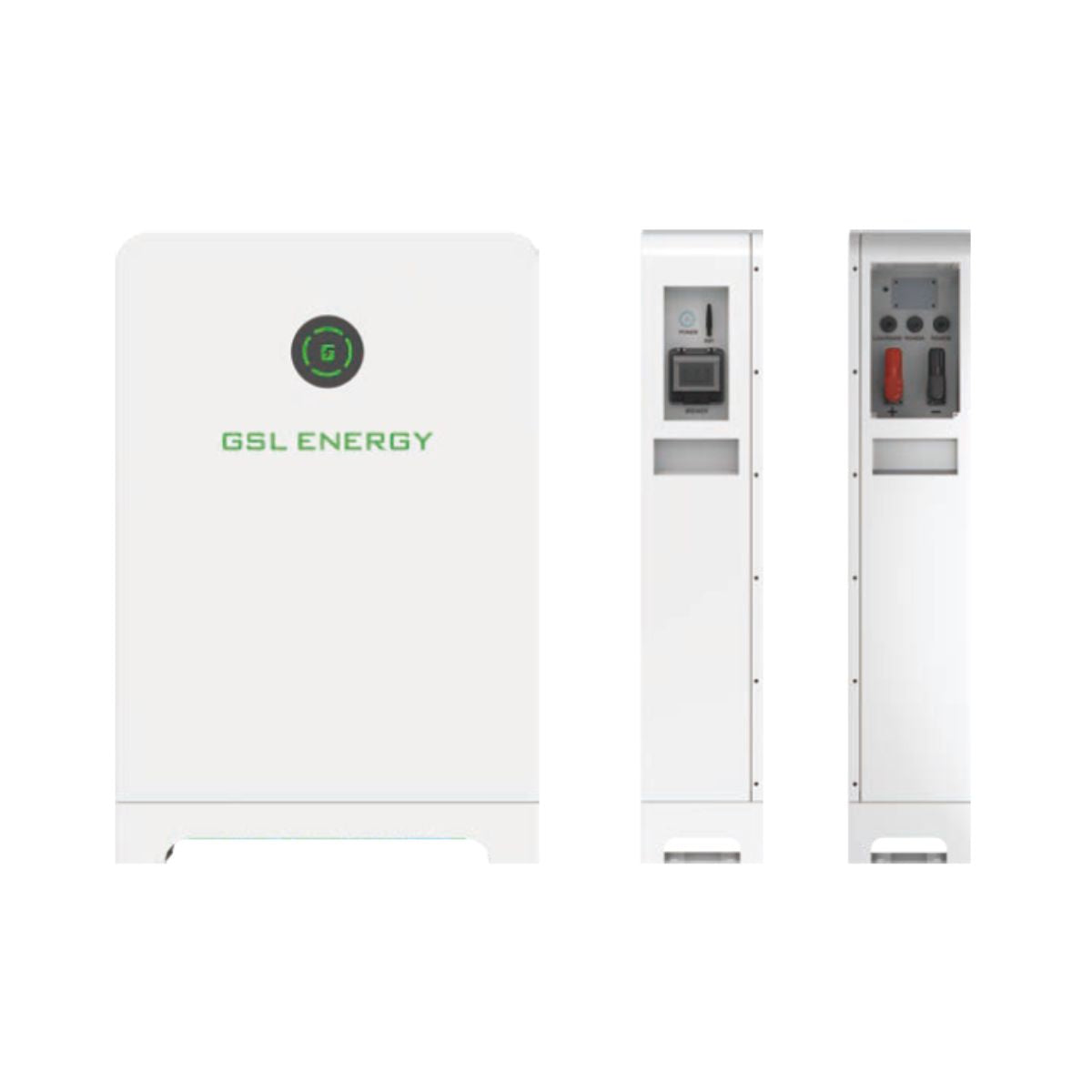

GSL 14.34 kWh Lithium Ion Battery with IP65 rated case and LED indicator lights
1 1

GSL Energy 14.3kWh LiFePo4 Battery

GSL Energy 14.3kWh LiFePo4 Battery

$2,999.00
$2,999.00
Sale Sold out

SKU: GSL-051280A-B-GBP2

Weight: 360.0 lb

View full details
Please note that this item cannot ship via USPS or to a PO Box. If you have questions, please call us at 417-708-5359 or send us an email.





As the leading vertically integrated manufacturer of lithium iron phosphate battery systems, GSL ENERGY has provided various battery solutions for nearly all kinds of ESS applications. Thanks to our self-developed core technology in cells/BMS/system design, GSL ENERGY has delivered more than 138+ countries serving 100,000+ users.

Features:

  • Long Life: Vertical industry integration ensures more than 8500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.
  • Intelligent: Each battery with independent BMS system manages power output intelligently and effectively.
  • Modular: Modular design gives the end customers the power of choice of capacity. Deliver up to 229KW with single max module (14.34KWh) at 16pcs parallel connection.
  • Easy to install and use: Just plug and play to minimize the installation time and cost.
    Compact and sleek design fits any home environment.
  • Compatibility: Compatible with most available hybrid inverters.
  • Safety Cert: UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, UN38.3, MSDS

Electrical Specifications:

  • Voltage: 51.2V
  • Capacity: 280Ah
  • Energy: 14.34kWh
  • Operating Voltage: 46-56V
  • Chemistry: Lithium Iron Phosphate (LiFePO4)
  • Charge/Discharge Current
    • Recommended: 110A
    • Max: 150A
    • Peak (2mins, 25℃): 200A
  • Recommended Discharge Energy ( 80% DOD): 11.47kWh
  • Scalability: Max16 pcs in parallel (229kWh)

Basic Parameters:

  • Recommended Depth of Discharge: 90%
  • Master LED Indicator:
    • 4 LED (SOC:25%~100%)
    • 2 LED (working, alarming, protecting)
  • IP Rating of Enclosure: IP65
  • Cycle Life (25±2℃, 0.5C/0.5C, 80% EOL): ≥8500

Environmental Specifications:

  • Working Temperature:
    • Charge: 0℃～55℃
    • Discharge:-20℃～55℃
  • Storage Temperature: 0℃～35℃
  • Altitude: ≤2000m
  • Operation Humidity: 5%~95%
  • Installation: Ground / Outdoor

Mechanical Specifications:

  • Dimensions (W*H*D): 700 x 1050 x 200 mm / 27.6 x 41.3 x 7.9 in
  • Weight: 134.5 kgs / 296 lbs

Communication:

  • CAN2.0, RS485, WiFi

Certification:

  • UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, UN38.3, MSDS

Warranty:

  • 15 Years
