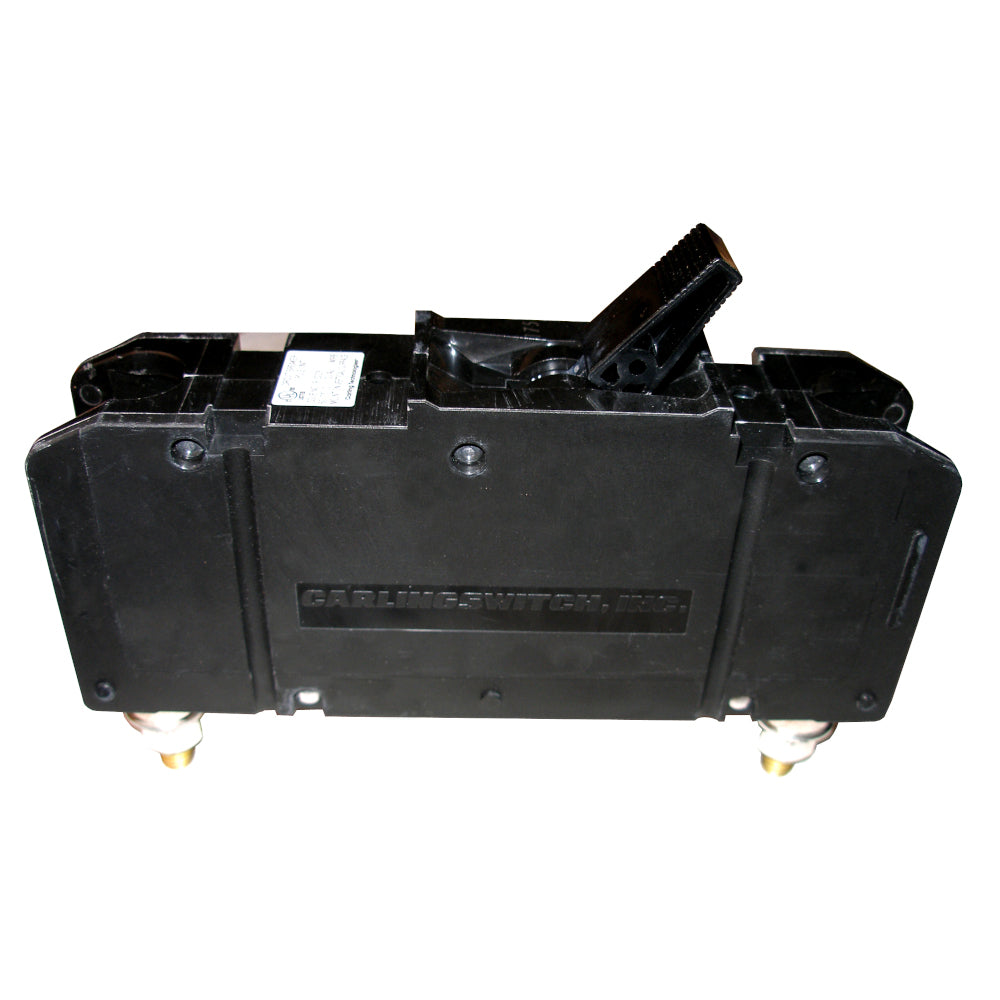

MidNite Solar MNEDC175A Non-Polarized Breaker

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.

• Breaker Torque Value: 15 Ft-Lbs (20.4NM)
• NON POLARIZED
• Environmental Rating - Type 1 (Indoor)
• Width 1.5 inches (39mm)
• 125VDC Panel Mount Breaker - 3/8" studs
• AIC 50,000 at 125VDC
• Breaker Torque Value: 15 Ft-Lbs (20.4NM)
• Includes two 10-32 x 3/8 Pan Head Phillips mounting screws
• Warranty - 5 yrs.
• Listed for US & Canada
