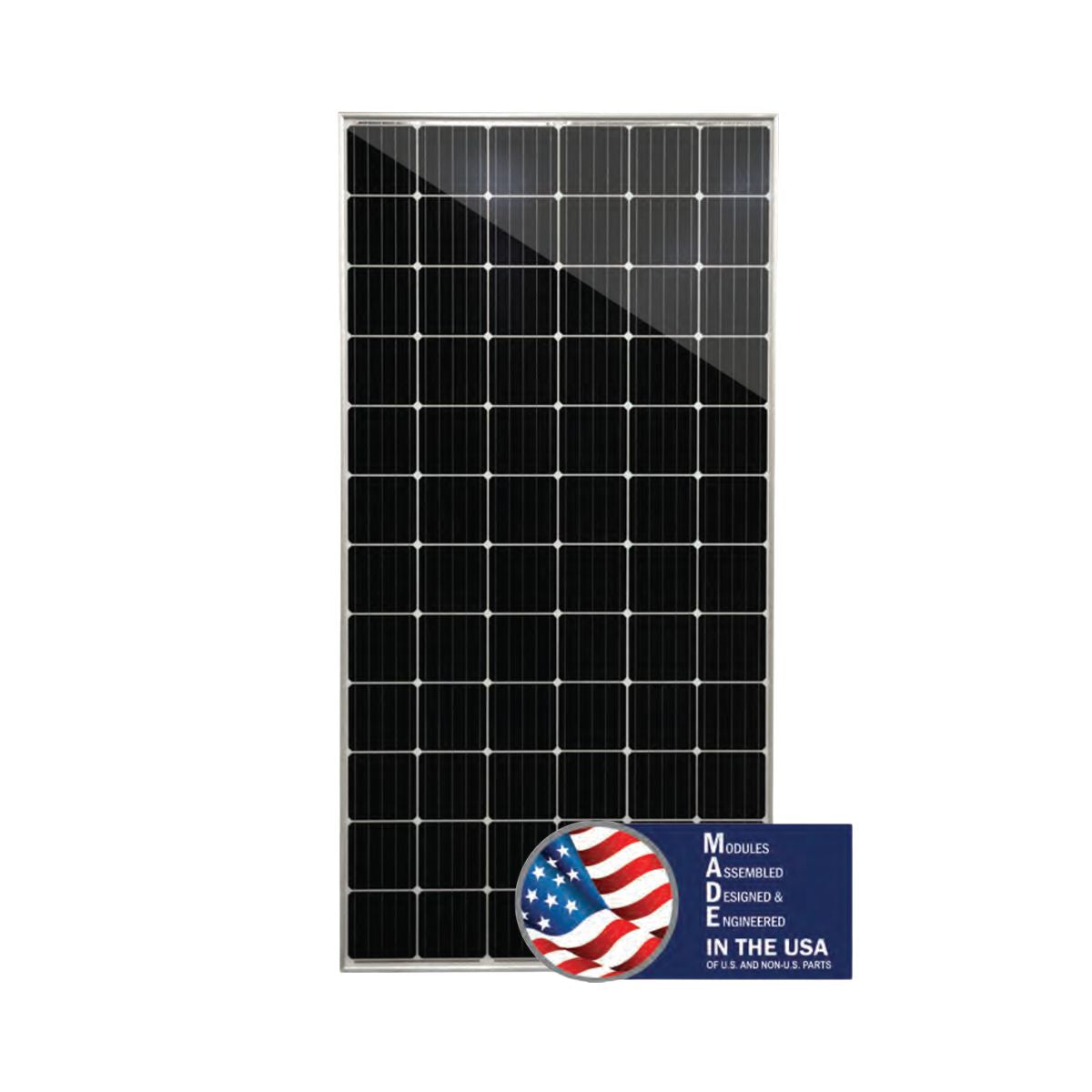

Mission Solar 365 Watt MSE PERC Solar Panel
Mission Solar 365 Watt MSE PERC Solar Panel
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
SKU: MISSION-365
Weight: 48.0 lb
Couldn't load pickup availability
- description
Mission Solar 365 Watt MSE PERC Solar Panel
| Cell Orientation: 72 cells (6x12), 5 busbar |
| Output Cable: PV wire, 1.2m (47.24 in.), 4mm / 12 AWG |
| Operational Temperature: -40°C (-40°F) to +90°C (194°F) |
| Power Output Tolerance: 0~+3% |
| Nominal Operating Cell Temperature: 44°C (±2°C) |
| Maximum System Voltage: 1500VDC |
Electrical Characteristics STC
| Maximum Power (Pmax) | 365 Watts |
| Maximum Power Current (Imp) | 9.236 A |
| Maximum Power Voltage (Vmp) | 39.52 V |
| Short Circuit Current (Isc) | 9.705 A |
| Open Circuit Voltage (Voc) | 48.05 V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m2,Cell Temperature 25°C
Mechanical Characteristics
| Cell Type | P-type Mono-crystalline Silicon (156.75mm) |
| Front Glass | 3.2mm (0.126 in.) tempered, Low-iron, Anti-reflective coating |
| Frame | Anodized Aluminum Alloy |
| Dimensions (in) | 1987mm x 999mm x 40mm / 78.23 in x 39.33 in x 1.57 in |
| Weight (lbs) | 47.6 lbs / 21.6 kg |
| Surface Maximum Load Capacity | 5600 pa (117 psf) |
Certifications: IEC 61215/ IEC 61730/ IEC 61701 UL 1703
