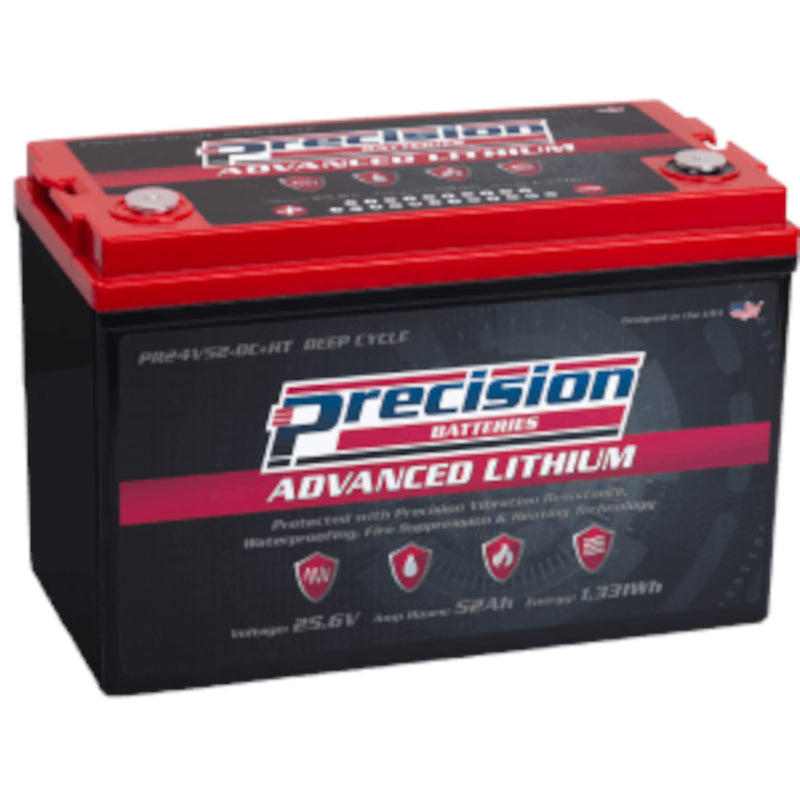

Precision PR24V52 24 Volt 52 Amp Hour Lithium Battery

Precision PR24V52 24 Volt 52 Amp Hour Lithium Battery

$734.99
$734.99
Sale Sold out

SKU: PR24V52-DC-HT

Weight: 37.0 lb

View full details

Precision Lithium Batteries
PR24V52-DC+HT | 24 Volt 52 Amp Hour

Electrical Specifications
Nominal Voltage 25.6 V
Nominal Capacity 52 Ah
Capacity @ 25A 156 min
Resistance ≤30 mΩ @ 50% SOC
Efficiency 99%
Self Discharge <3% per Month
Maximum Modules in Series 1 (Single Use)



Charge Specifications
Recommended Charge Current 2.5A - 25A
Maximum Charge Current 52 A
Charge Current 14 to 32°F
(-10 to 0 °C) 		≤0.3 C
Charge Current -4 to 14 °F
(-20 to -10 °C) 		≤0.03 C
Recommended Charge Voltage 28.4V - 29.2V
BMS Charge Voltage Cut-Off 31.2V (2.5 ±0.05 vpc)
(1.5 ± 1.0 s)
Reconnect Voltage 30.4V (3.8 ±0.05 vpc)
Balancing Voltage 27.6V (3.5 ±0.05 vpc)



Temperature Specifications
Discharge Temperature -4 to -140 °F
Charge Temperature -4 to 113 °F
Storage Temperature 23 to 95 °F
BMS High Temperature Cut-Off 167 °F
Reconnect Temperature 122 °F

Certifications:

  • UN38.3 & CE (Battery)
  • UL1642 (Cells)
  • IEC62133 (Cells)

Weight & Dimensions:

  • (LxWxH) 330 x 172 x 218 mm / 12.99 x 6.77 x 8.58 in
  • 33.7 lbs
