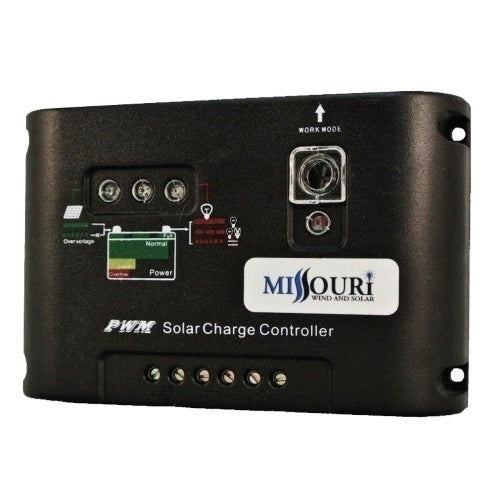

12/24 Volt 10 Amp PWM Solar Panel Charge Controller with LED Display
12/24 Volt 10 Amp PWM Solar Panel Charge Controller with LED Display
Regular price
$3.99
Regular price
Sale price
$3.99
Unit price
per
SKU: PWMBLK-10
Weight: 0.5 lb
Couldn't load pickup availability
- description
Programmable Solar Charge Controller for both 12 and 24 Volt Systems
Features:
- PWM Charge Controller
- Programmable
- Street light controller capability
- Adjustable Light On + Delay Off Timer
- 12 Volt and 24 Volt Battery Auto Sensing (one controller does both)
- Over-load protection
- Short circuit protection
- Under voltage protection
- Over charging protection
- CE Certified
- Voltage: 12/24V AUTO switch
- Amperage: 10 amps
Dimensions:
- 4 x 3.75 x 1.4 inches
| Rated voltage | 12V or 24V | Voltage of stop power supply | *10.8V or 21.6V |
| Rated charging current | 10A | Voltage of resume power supply | *11.8V or 23.6V |
| Rated load current | 10A | Voltage of stop charging | *14V or 28V |
| Working temperature | -20 ~ +60°C -4 ~ +140°F | Temperature coefficient of voltage stop charge | -3mV/°C/cell |
| Dimensions (LxWxH) | 101 x 95 x 35 mm 4 x 3.75 x 1.4 in | Net weight | 120 g 1/4 lb |
Want a similar solar charge controller with an LCD display? See our 10 Amp, 20 Amp, 30 Amp, and 40 Amp versions.
