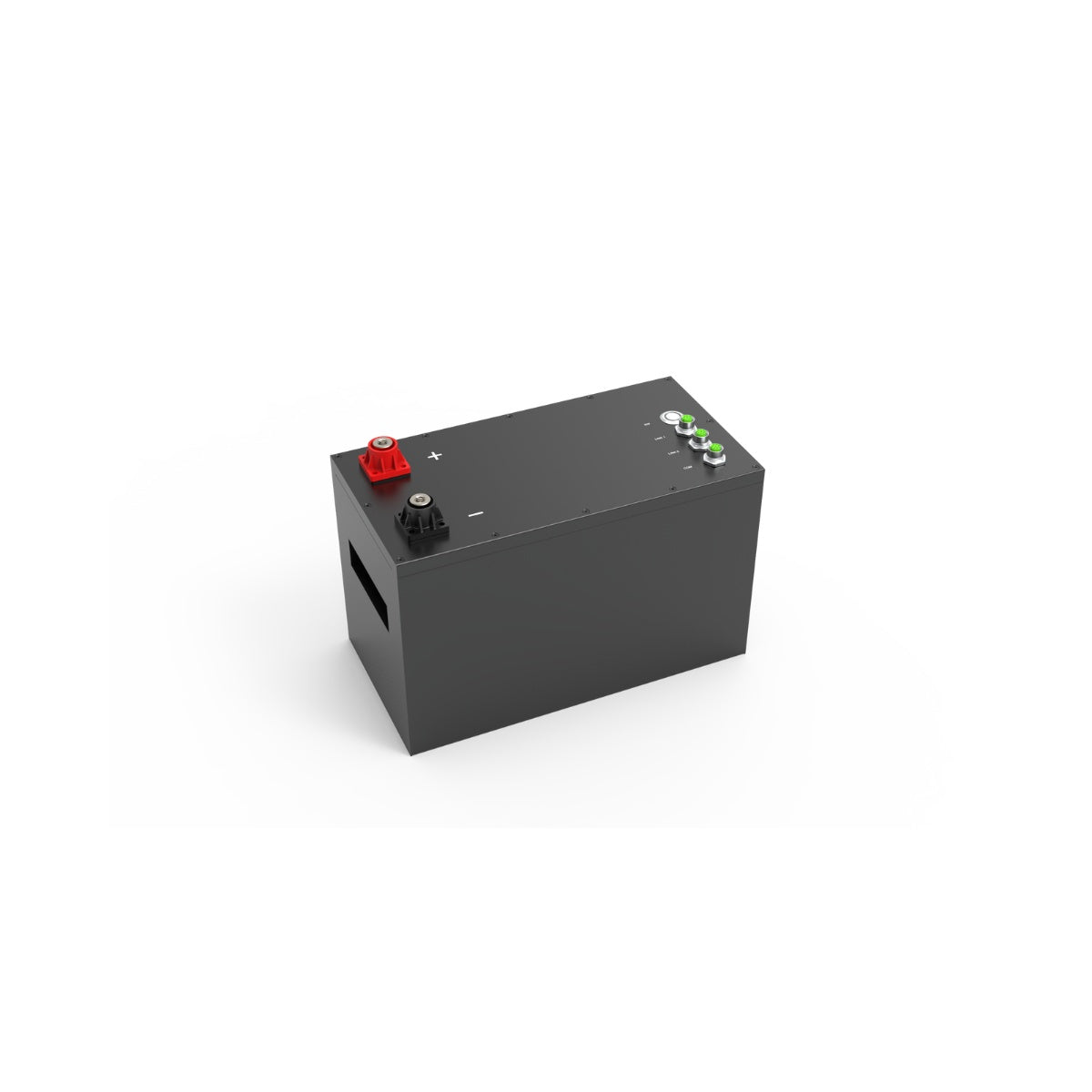

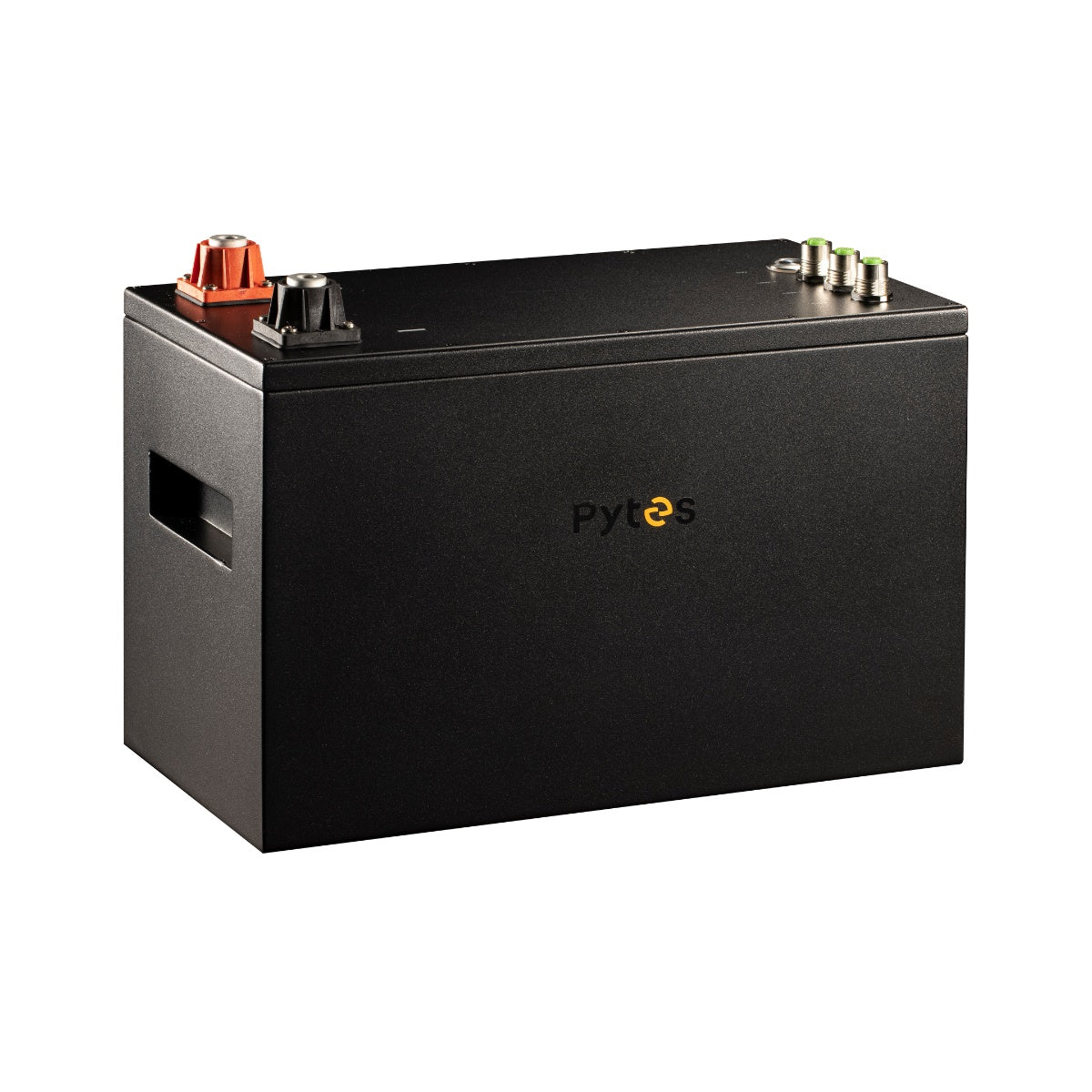

The Pytes eBox 12100 LFP Battery fits a wide variety of 12 Volt applications. Perfect for RV, marine, greenhouses, construction and work trucks, and small off-grid solutions, this LiFePO4 boasts up to 1.28kWh of energy storage and a max power rating of 100 amps.
Features:
- Powerful: 1C discharge rate, continuous output power, suitable for applications that require quick bursts of power.
- Wider Operation Temperature: By using a heating pad, the battery's temperature can be maintained within an optimal operating range.
- Long-lasting and Efficient: 4000+ cycles @80%DOD
- Smart Energy Management: Features advanced RS485 communication port your battery will be able to communicate with hyper terminal, allowing you to monitor the state of the battery in real time.
-
Auto-balancing Function: Easily connect multiple batteries in parallel/series with the auto-balance function to increase the
average charging efficiency of the batteries over long periods of use.
Electrical Specifications:
- Nominal Voltage: 12.8V
- Nominal Capacity: 100Ah
- Nominal Energy: 1.28kWh
- Voltage Range: 10.8-14.4V
- Chemistry: Lithium Iron Phosphate (LiFePO4)
- Maximum continuous charge current: 50A(1C)
- Maximum continuous discharge rate: 100A(1C)
- Insulation Resisitance: <4.6mΩ
- Series Connection Allowed: Up to 2S (2S8P)
- Parallel Connection Allowed: Up to 8P
- Cycle Life: 4000 cycles (@80% DOD)
- Self-Heating: Temperature Rise: 10°C(18°F)/Hour / Operation Temperature: -18°C~10°C(-0.4°F~50°F)
Environmental Specifications:
- Operation Temperature: 14~131°F
- Storage Temperature: -4~140°F
- Altitude: <4000m(13123.35ft)
- Operation Humidity: 0~95%, No Condensation
Mechanical Specifications:
- Dimension(L*W*H): 12.6" x 6.5" x 7.9"
- Weight: 33.6 lbs

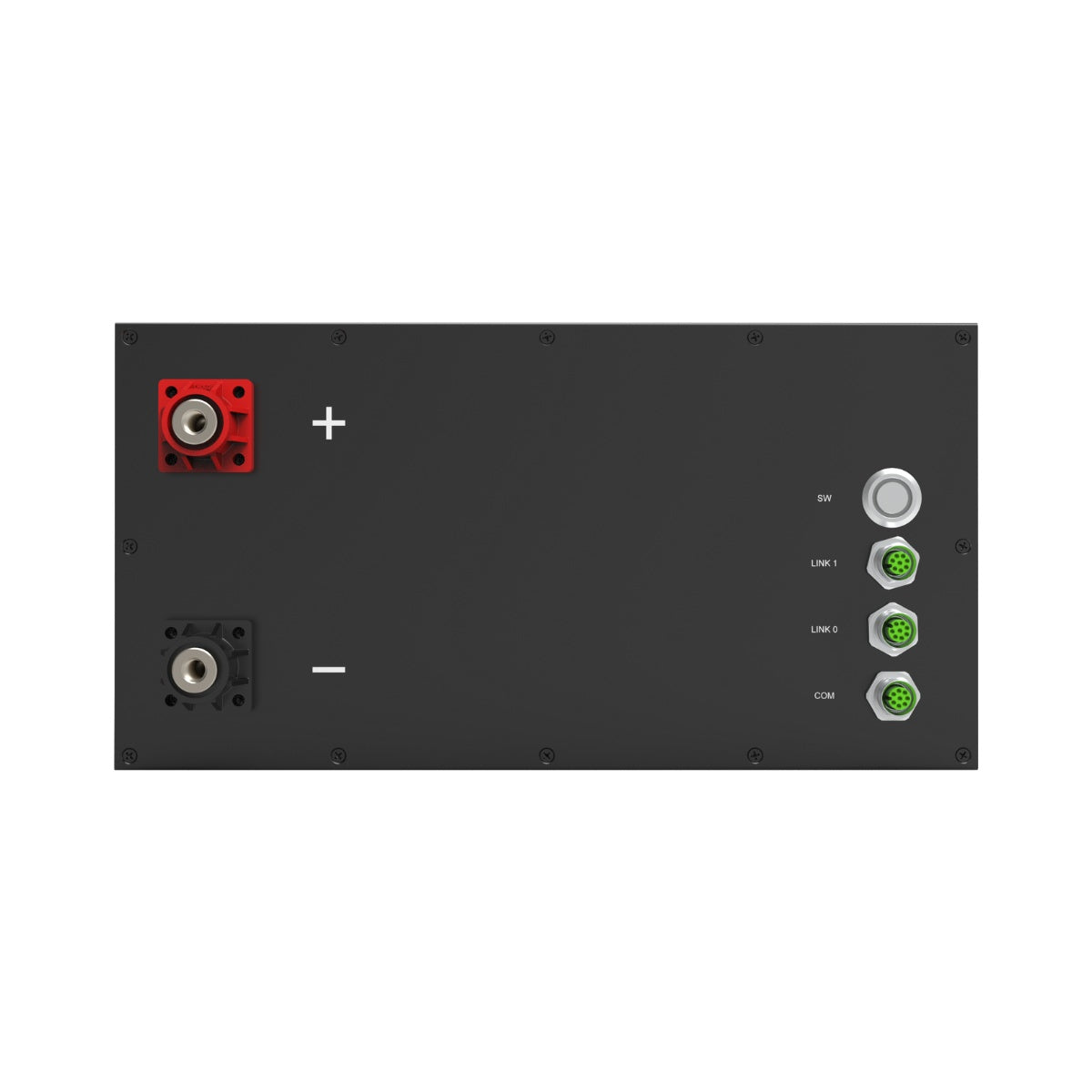

- Power Terminal: M8 Bolt
- IP65
Communication:
- RS485, CAN
Certification:
- UN38.3, IEC62619, CE
Warranty:
- 5 Years
