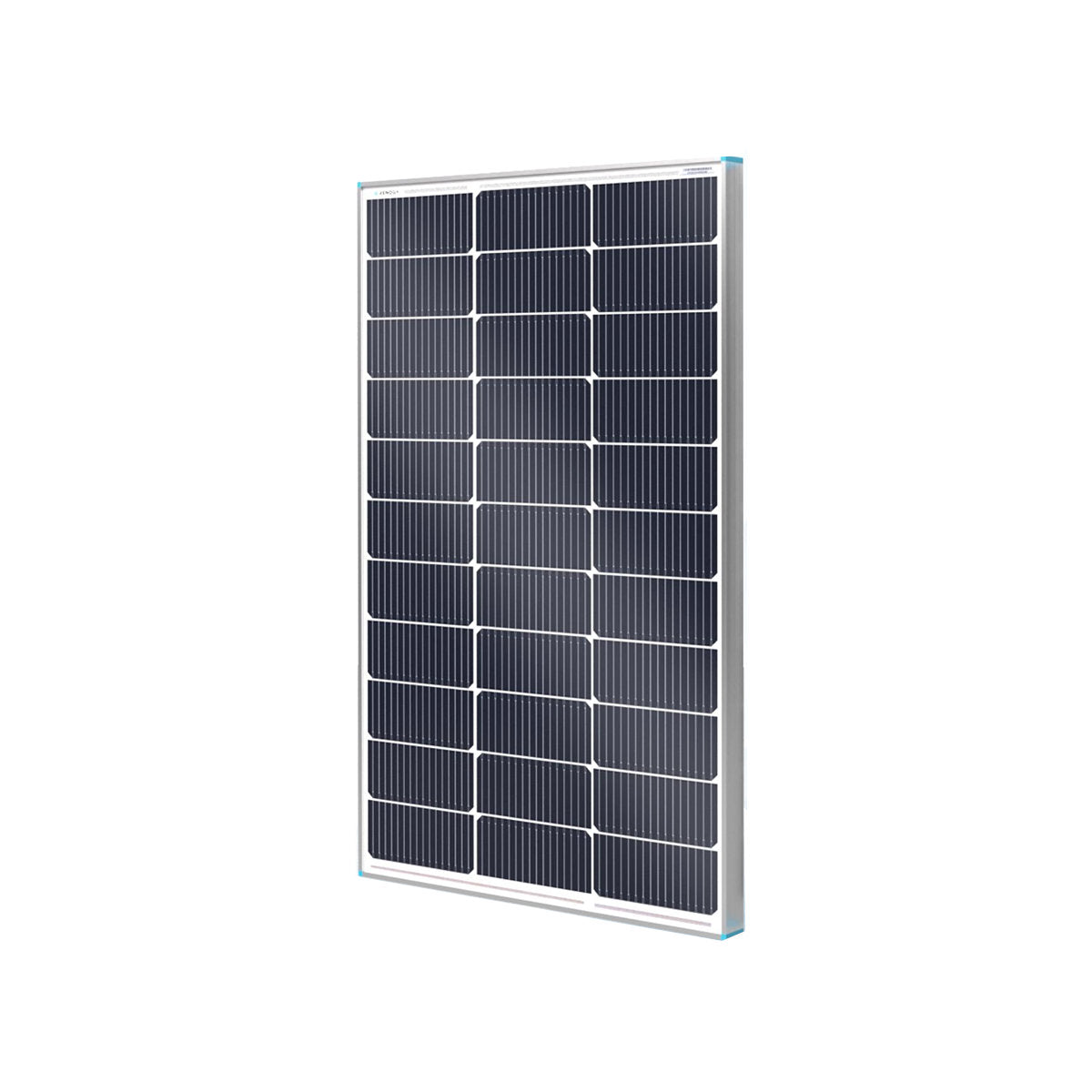

Renogy 100 Watt Monocrystalline Solar Panel
Renogy 100 Watt Monocrystalline Solar Panel
Regular price
$94.99
Regular price
Sale price
$94.99
Unit price
per
SKU: RSP100DC-US
Weight: 16.0 lb
Couldn't load pickup availability
- description
The Renogy 100 Watt 12 Volt Monocrystalline Solar Panel features a sleek and durable frame design. This solar panel uses high-efficiency monocrystalline silicon solar cells and frame corner supports for outdoor protection.
- High module conversion efficiency
- Top ranked PTC rating
- Quick and inexpensive mounting
- 100% EL testing on all Renogy modules
- No hot spots guaranteed
Product Specifications:
| Maximum Power (Pmax): 100 Watts | Cell Efficiency: 20.00% |
| Maximum System Voltage: 600 VDC | Open Circuit Voltage (VOC): 22.79 Volts |
| Optimum Operating Voltage (VMP): 19.97 Volts | Short Circuit Current (ISC): 5.31 Amps |
| Optimum Operating Current (IMP) 5.01 Amps | Maximum Series Fuse Rating: 15A |
| Certifications: CE, ISO 9001 |
- IP65 Rated waterproof junction box
- IP67 Rated waterproof MC4 connectors
- Connectors: MC4 Connectors
- Number of Cells: 33
Weight & Dimensions:
- 34.1 x 22.8 x 1.2 inches
- 13 pounds / 5.9 kg
Construction:
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Corrosion-resistant aluminum frame with corner supports allows extended outdoor use; the panels can last for decades
-
Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
-
EL tested solar modules; no hot-spot heating guaranteed
Warranty:
-
25-year power output warranty
-
10-year material and workmanship warranty
