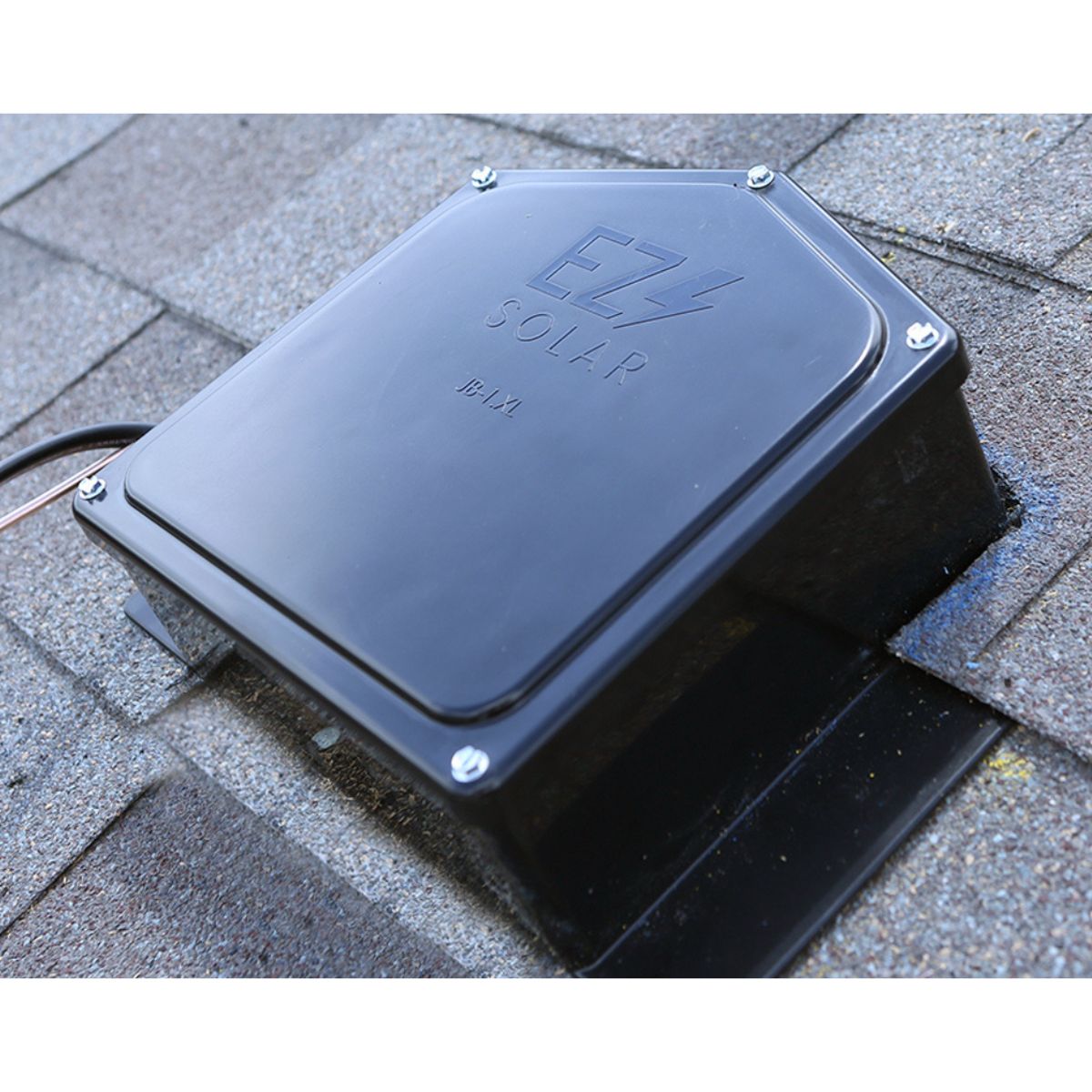

EZ Solar JB-1.XL Rooftop PV Junction Box

Features:

• 3 patented layers of water protection
• 2 weep holes for breathability
• Minimal shingle cutting
• Enter through 3 side walls
• Din rail pre-installed

System Specifications:

• Maximum Voltage: 1,000 Volts
• Maximum Current: 120 Amps
• Allowable Wire: 14 AWG – 6 AWG
• Spacing: Please maintain a spacing of at least ½” between uninsulated live parts and fittings for conduit, armored cable, and uninsulated live parts of opposite polarity.
• Enclosure Rating: Type 3R
• Roof Slope Range: 2.5 – 12:12
• Max Side Wall Fitting Size: 1”
• Max Floor Pass-Through Fitting Size: 1”
• Ambient Operating Conditions: (-35°C) - (+75°C)
• Compliance:: UL1741, CSA C22.2 No. 290- Approved wire connectors: must conform to UL1741, CSA C22.2 No. 290
• System Marking: Intertek Symbol and File #5019942
• Periodic Re-inspections: If re-inspections yield loose components, loose fasteners, or any corrosion between components, components that are found to be affected are to be replaced immediately.
