S-5! N Bracket

S-5! N Clamp

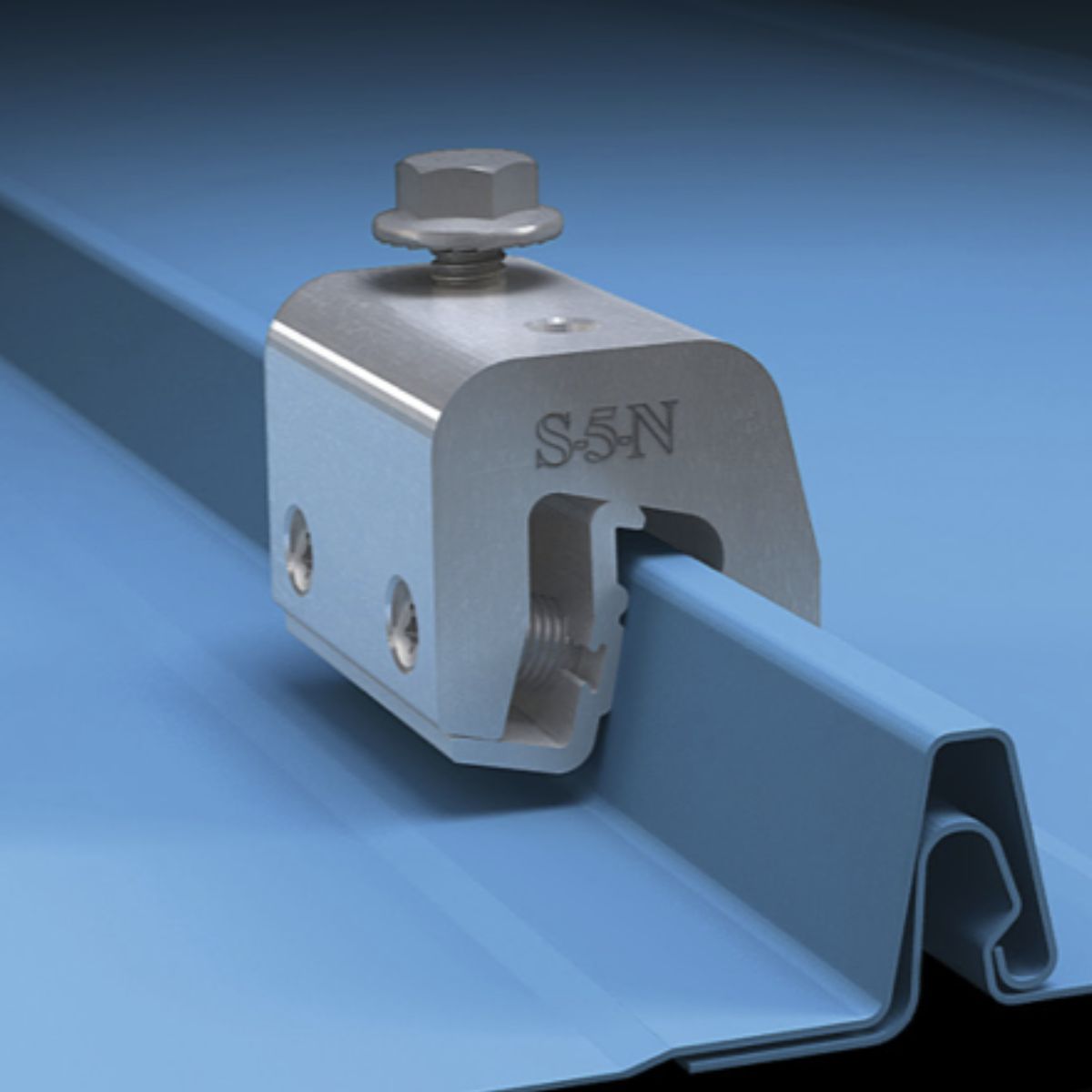

The S-5-N (“N” stands for nail strip) is a non-penetrating, standing seam metal roof (SSMR) clamp. The N fits popular 1″ nail strips, such as: Taylor Metals’ Easy Lock™, ASC Building Products’ Skyline Roofing®, New Tech Machinery’s FF100 and roofing types with similar profiles.

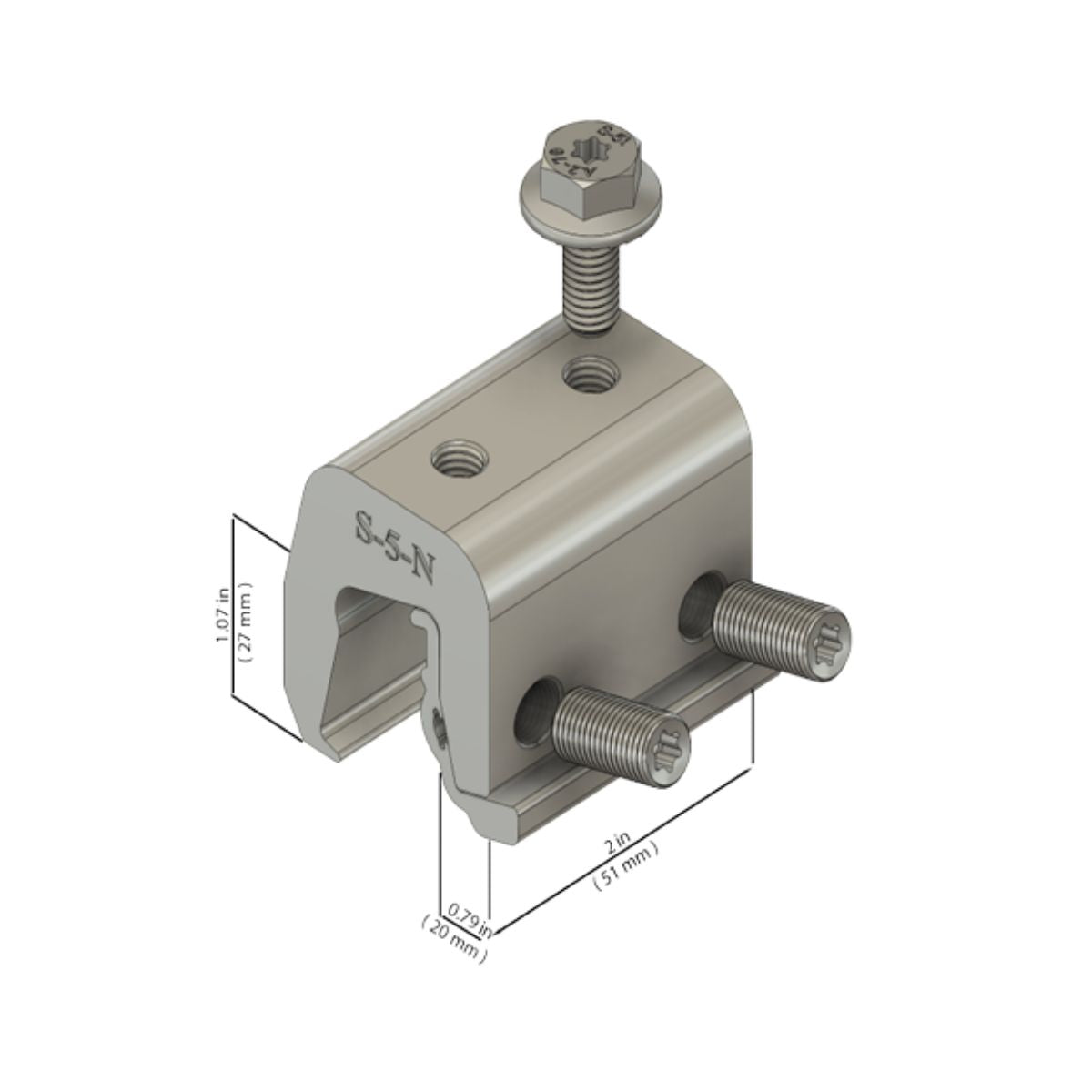

Choose the N to mount to nail flange metal roof profiles with a base of rib dimension ≤ .82” (20 mm).

Product Specifications:

• Angled setscrews for easy installation; no special tools required

• Special design for “nail-flange” SSR profiles ≤ 1” (25 mm) in height and with a base of rib dimension < .82” (20 mm)

• Clamp insert facilitates best-fit without damage to panel seam

• Use for heavy-duty applications, such as snow retention

• Two T-30 Torx round-point setscrews (Torx bit tip provided)

• One M8 bolt included

Product Certifications:

• ICC-ES
• FPA HVHZ Approvced
• IAPMO/UES
• UL2703
• LA County
• Sunnova AVL
