Victron Energy SmartSolar MPPT RS 450/100-MC4
Victron Energy SmartSolar MPPT RS 450/100-MC4
SKU: SCC145110510
Weight: 22.0 lb
Couldn't load pickup availability
- description
- Product Documents
Victron Energy eSmartSolar MPPT RS 450/100-MC4 Charge Controller
The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
The MPPT controller features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernize the presentation in line with the latest suite of Victron products.
*Equipped with VE.Can bus ports to allow multiple units to be daisy chained to each other with an RJ45 cable.
| Feature | Specification |
|---|---|
| CHARGER | |
| Battery Voltage | 48 V |
| Rated Charge Current | 100 A |
| Maximum charge power | 5.8 kW at 57.6 V |
| Charge voltage 'absorption’ | Default setting: 57.6 V (adjustable) |
| Charge voltage 'float' | Default setting: 55.2 V (adjustable) |
| Programmable voltage range | Minimum: 36 V Maximum: 60 V (7) |
| Charge Algorithm | Multi-stage adaptive (adjustable) |
| Battery temperature sensor | Included |
| Maximum efficiency | 96 % |
| Self-consumption | 15 mA |
| SOLAR | |
| Maximum DC PV Voltage | 450 V |
| Start-up Voltage | 120 V |
| MPPT Operating Voltage Range | 65 - 450 V (1) |
| Number of Trackers | 2 |
| Max. PV Operational Input Current | 16 A per tracker |
| Max. PV Short Circuit Current (2) | 20 A per tracker |
| Max. DC output charging power | 4000 W per tracker 5760 W total |
| Maximum PV Array Size per Tracker (3) | 7200 Wp (450 V x 20 A) |
| PV Isolation Fail Level (4) | 100 kΩ |
| GENERAL | |
| Synchronised Parallel Operation | Yes, up to 25 units with VE.Can |
| Programmable Relay (5) | Yes |
| Protection | PV reverse polarity Output short circuit Over temperature |
| Data Communication | VE.Can, VE.Direct, Bluetooth (6) |
| Bluetooth Frequency | 2402 - 2480 MHz |
| Bluetooth Power | 4 dBm |
| General purpose analogue/digital in port | Yes, 2x |
| Remote On/Off | Yes |
| Operating Temperature | -40 to +60 °C (fan assisted cooling) |
| Humidity (non-condensing) | max 95% |
| ENCLOSURE | |
| Material & Color | steel, blue RAL 5012 |
| Protection Category | IP22 |

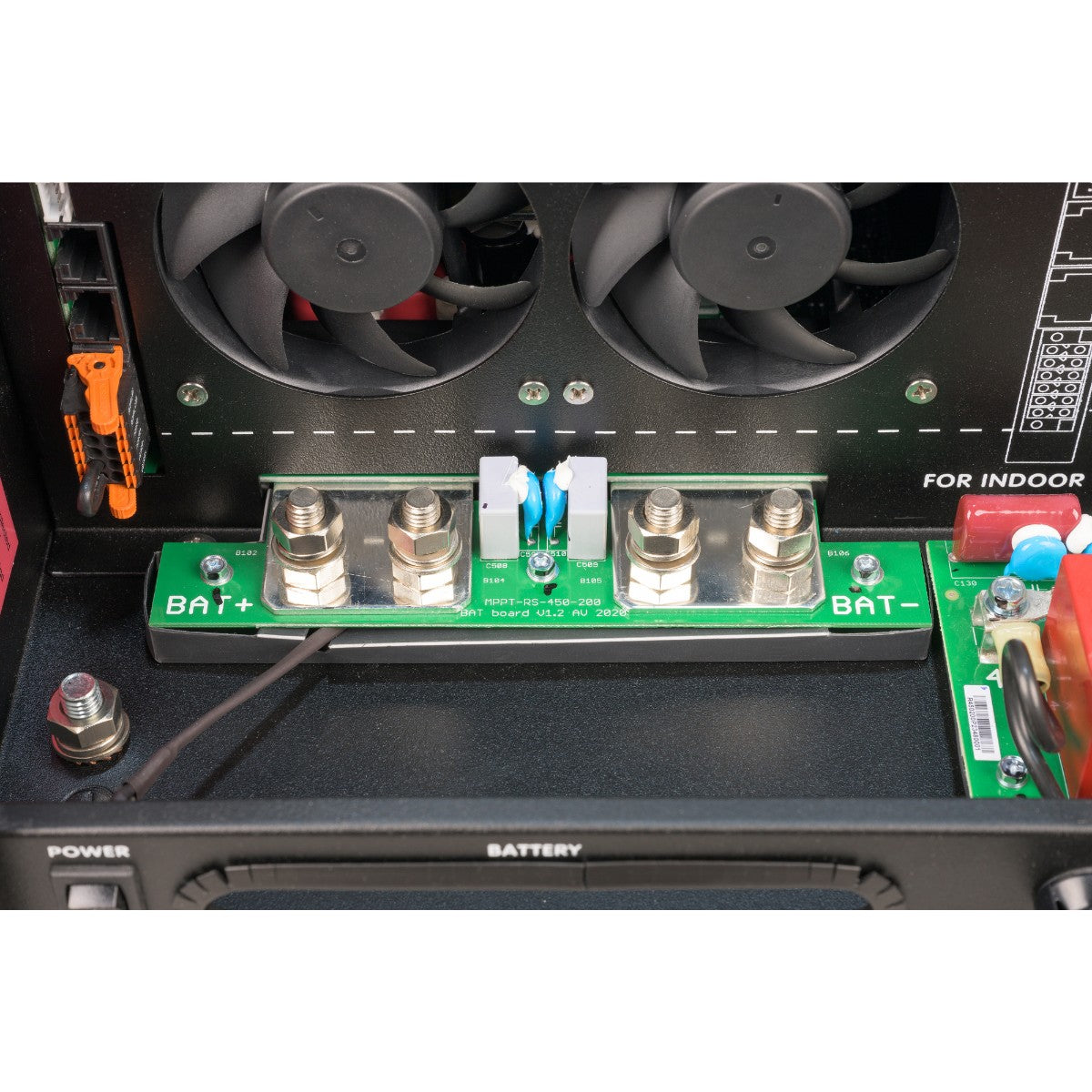

| Battery Connection | 2x M8 bolts 1x positive and 1x negative |
| Power terminals PV input | 1 pair of male and female MC4 connectors per tracker |
| Weight | 7.9 kg |
| Dimensions (h x w x d) | 440 x 313 x 126 mm |
| STANDARDS | |
| Safety | EN-IEC 62109-1 |
| Country of Origin | Designed in The Netherlands made in India |
1) MPPT operating voltage range is constrained by battery voltage - PV VOC should not exceed 8 x battery float voltage. For example, a 52.8 V float voltage results in a maximum PV VOC of 422.4 V. See product manual for further information.
2) A higher short circuit current may damage the controller if PV array is connected in reverse polarity.
3) Max. 450 VOC result in appr. 360 Vmpp, therefor the maximum PV array is appr. 360 V x 20 A = 7200 Wp.
4) The SmartSolar MPPT RS will test for sufficient resistive isolation between PV+ and GND, as well as PV- and GND. If the resistance falls below the threshold, the unit will report an error and send an error signal to the GX device (if connected) for audible and email notifications. Despite the error, the product will continue charging the battery.
5) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4 A up to 35 VDC and 1 A up to 70 VDC
6) The MPPT RS is currently not compatible with VE.Smart Networks.
7) The Charger set-point (float and absorption) can be set to max 60 V. The output voltage at the charger terminals can be higher, due to temperature compensation as well as compensation for voltage drop over the battery cables. The maximum output current is reduced on a linear basis from full current at 60 V to 5A at 62 V. The equalization voltage can be set to max 62 V, the equalization current percentage can be set to max 6%.
