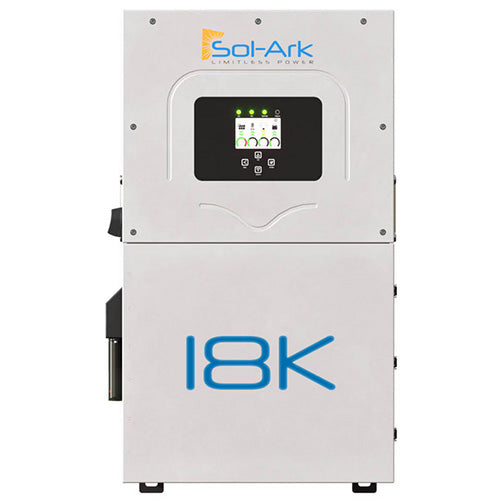

Sol-Ark 18K 2P-N Pre-wired Hybrid Inverter System

Engineered for the most grueling off-grid or backup needs, the 18k 2P-N can deliver industry leading continuous power from batteries to support large loads. The 18k 2P-N delivers 36kW of surge power for 10s to ensure HVAC units and motors have no problem starting in a grid-down scenario.

In order to ensure adequate production, the 18k 2P-N supports more PV than any other residential inverter (over 40kW when utilizing AC coupled functionality). This powerhouse unit runs American engineered firmware, keeps your data stateside, and comes standard with a 10-year warranty.

SA-18K Features:

• Simple to install with touchscreen interface
• Grid Tied Mode: Sell your power to reduce electric bill
• Meter Zero Mode: Zero your electric bill without a smart meter
• Time of Use: Use solar and batteries to minimize grid power usage
• Programmable Smart Load Mode
• DC and AC Coupling
• Works with a wide range of battery chemistries- Lead acid to Lithium

SA-18K Specifications:

• AC Voltage: 120/240V split phase
• AC Frequency: 208 0.88Un＜U＜1.1Un / 55-65
• Max Continuous AC Output Power: 18,000W continuous / 36,000W surge (10s)
• MPPT Voltage Range: 150-425V
• Max Input Current: 36 Amp (per MPPT)
• Max Efficiency: 97.6%

• Stackable: Yes; Max 12
• Listings & Certifications: UL1741 3rd SB, UL1741 CRD-PCS, IEEE1547-2018 and interoperability using IEEE2030.5, Hawaiian Electric SRD V2.0, UL1699B PVDC AFCI,
  UL1998, CSA C22.2 No. 107
• Weight: 137 lbs
• Enclosure: IP65 / NEMA 3R
• Dimensions (H x W x D): 33.97" x 18.3" x 11.1"

10 Year Standard Warranty
