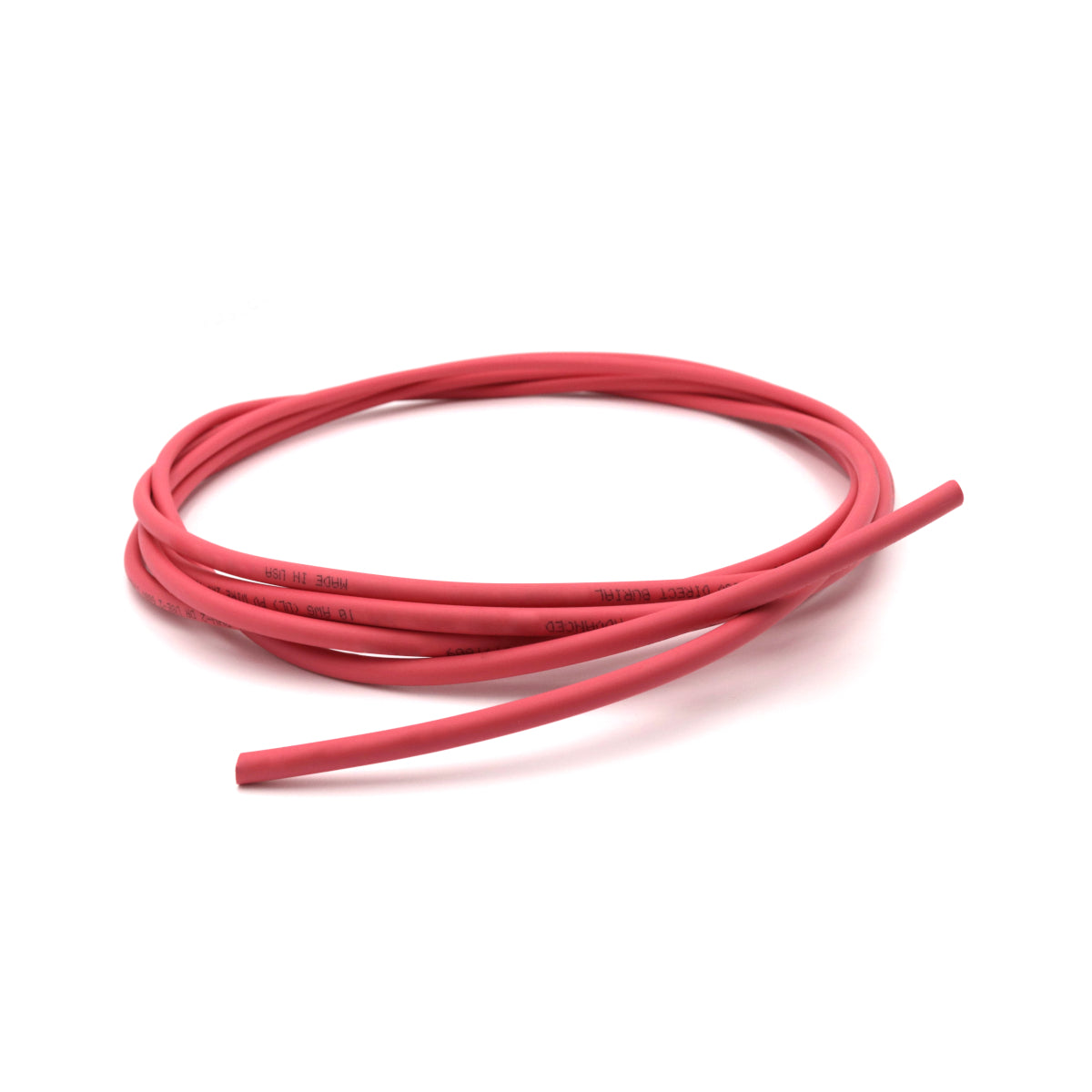

Solar PV Cable #10 AWG UL Approved (by the foot) | Red and Black

Solar PV Cable #10 AWG UL Approved (by the foot) | Red and Black

$0.51
$0.51
Sale Sold out

SKU: PV-10AWG-0

Weight: 0.05 lb

Color: Black
View full details

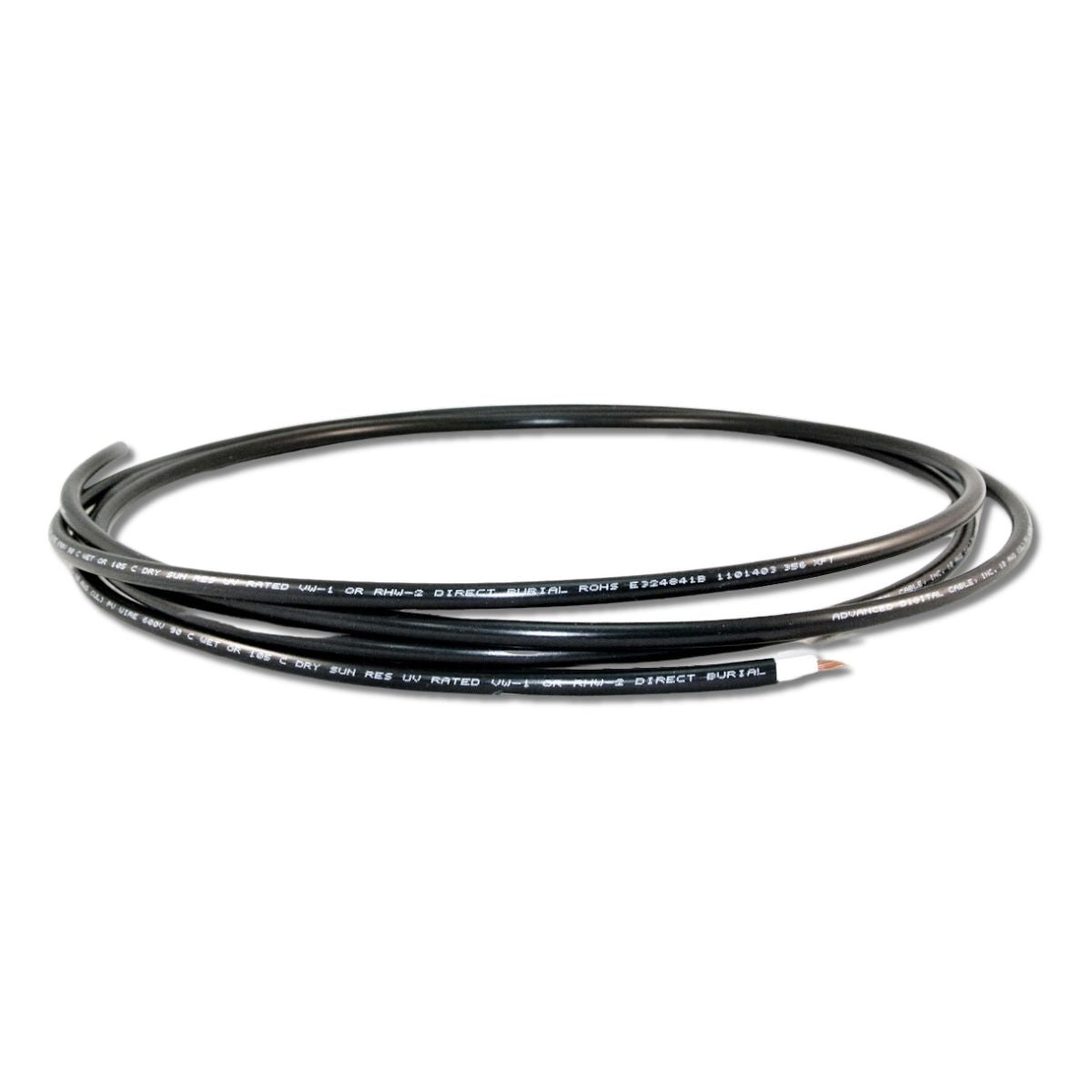

Solar PV Cable #10 AWG UL Approved

1000/2000 Volt Copper - Direct Burial

Description:

  • Single copper conductor, stranded and insulated with moisture and heat resistant, chemically crosslinked polyethylene. No pulling lubricant required.  Rated 2kV to meet the challenging requirements of transformerless inverters on photovoltaic installations.

Applications:

  • Appropriate for use in solar power applications in grounded interconnection and un-grounded systems. Suitable for use in 105°C dry systems.

Construction:

  • Conductors: Stranded bare copper conductor per ASTM B-3, B-8.
  • Insulation: White Chemically Cross-linked polyethylene with colored sunlight resistant PVC jacket.
  • Color: Black

Industry Listings & Standards:

  • Sunlight Resistant
  • Gasoline and Oil Resistant II
  • Direct Burial
  • RoHS Compliant
  • Made in the USA
  • UL 44 RHW-2, UL 854 USE-2, and UL 4703 PV Wire
  • C(UL) RPVU90 1kV/2kV: CSA C22.2 #271
  • ICEA S-95-658/NEMA WC-70
  • Federal Spec. A-A-59544
  • Temperature Rated at 90°C Wet/Dry, Cold Temperature Rated at -40°C
Cable Specifications:
  • Insulation Thickness: 75 mils
  • Outside Diameter: 0.27 in
