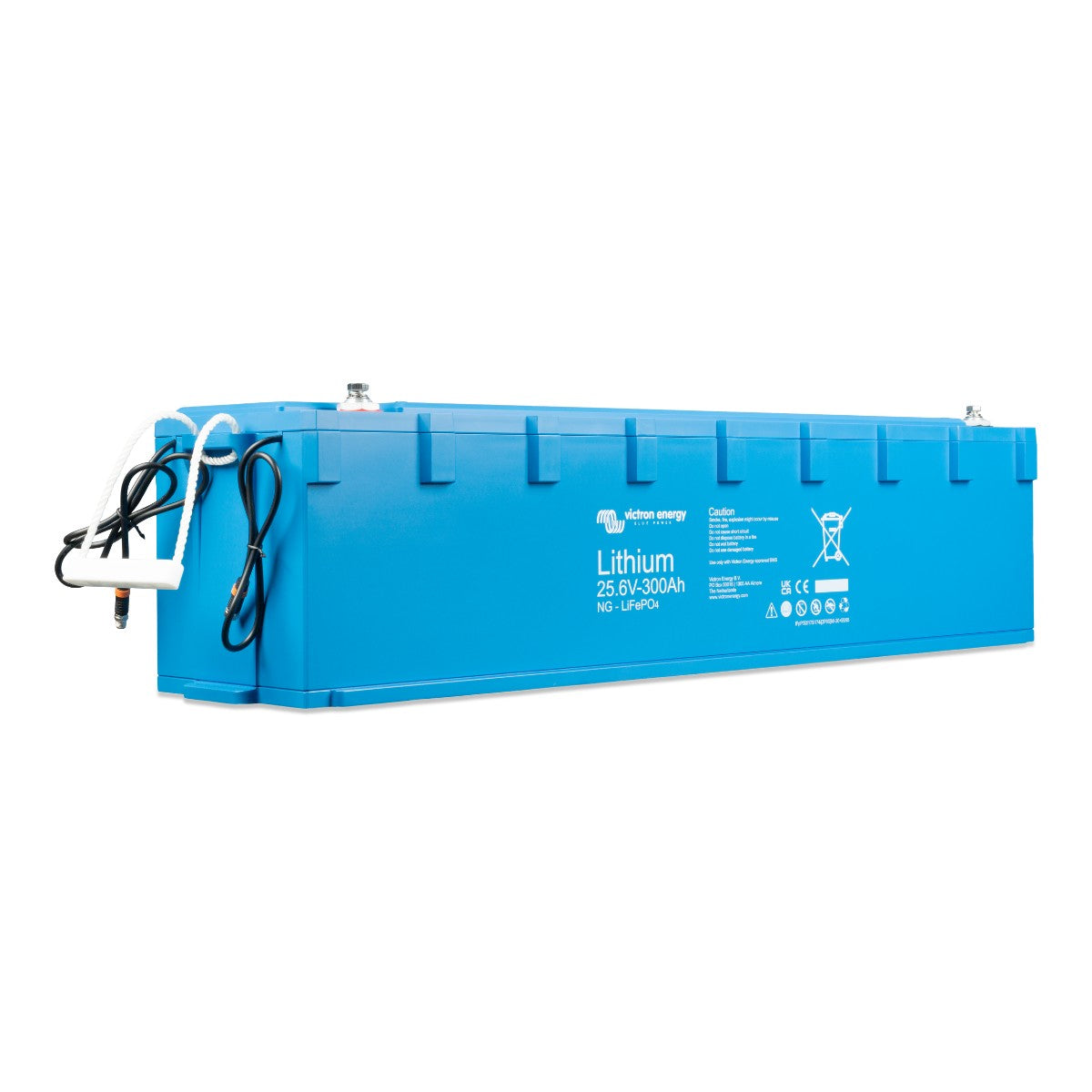

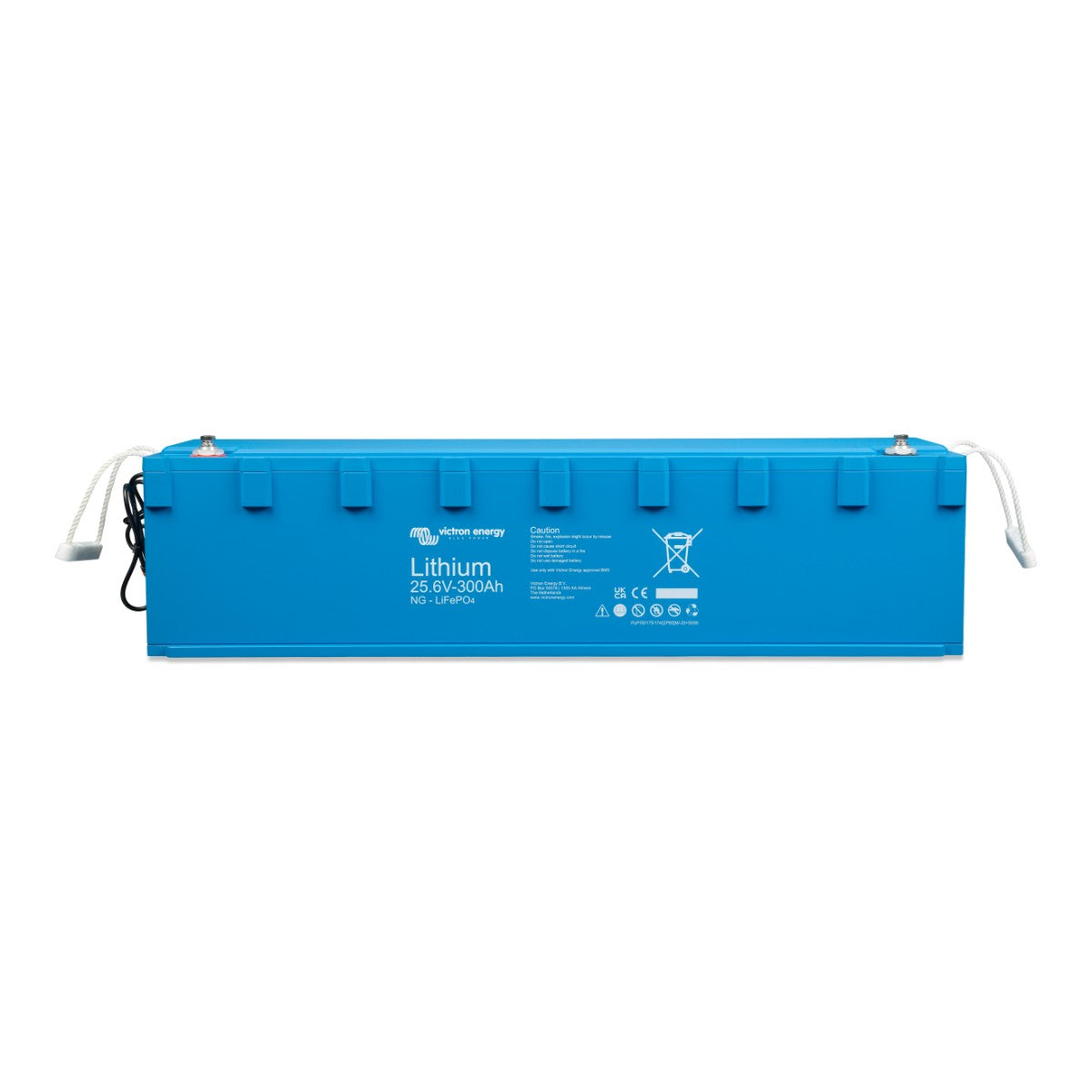

Victron Energy Lithium 25.6V/300Ah NG
Victron Energy Lithium 25.6V/300Ah NG
SKU: BAT524130620
Weight: 145.51 lb
Couldn't load pickup availability
- description
| Please note that this item must ship via freight or be picked up at our location in Seymour, Missouri. If you have questions, please call us at 417-708-5359 or send us an email |
Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO₄ or LFP) batteries available in various capacities with nominal voltages of 12.8V, 25.6V, and 51.2V. They can be connected in series, parallel, or a combination of both to create battery banks for system voltages of 12V, 24V, or 48V. A maximum of 50 batteries can be used when configuring a bank with 12V or 24V batteries. This allows for a maximum energy storage capacity of up to 384 kWh with 24V batteries. This is the safest of the mainstream lithium battery types and is the battery chemistry of choice for very demanding applications.
Features:
- Integrated cell balancing, temperature and voltage control system
- Integrated shunt
- Automatic setup, monitoring and control via VictronConnect or a GX device and the VRM Portal
- Easy bracket mounting
- Increased ingress protection (IP-rating)
- Low self-discharge rate
|
VOLTAGE AND CAPACITY |
||
|
Battery model |
LFP 25,6 V/300 Ah |
|
|
Nominal voltage |
25,6 V |
|
|
Nominal capacity @ 25 °C* |
300 Ah |
|
|
Nominal energy @ 25 °C* |
7680Wh |
|
|
Capacity loss |
(per 100 cycles, @ 25 °C, 100 % DoD): <1 % |
|
|
Energy loss |
(per 100 cycles, @ 25 °C, 100 % DoD): <1 % |
|
|
Round trip efficiency |
92 % |
|
|
* Discharge current ≤ 1C |
||
|
CYCLE LIFE (capacity ≥ 80% of nominal) |
||
|
80 % DoD |
2500 cycles |
|
|
70 % DoD |
3000 cycles |
|
|
50 % DoD |
5000 cycles |
|
|
DISCHARGE |
||
|
Max continuous discharge current (C-rate) |
300 A (1C) |
|
|
Max pulse discharge current 10s (C-rate) |
600 A (2C) |
|
|
End of discharge voltage |
22,4 V |
|
|
Internal resistance |
1 mΩ |
|
|
CHARGE |
||
|
Charge voltage |
Between 28 V and 28,4 V |
|
|
Float voltage |
27 V |
|
|
Max continuous charge current (C-rate) |
300 A (1C) |
|
|
Max pulse charge current 10s (C-rate) |
450 A (1.5C) |
|
|
GENERAL |
||
|
BMS-es |
Lynx Smart BMS NG 500 A / 1000 A (M10 busbars), must be purchased separately |
|
|
Cell measurements |
Cell voltages and temperatures, battery current |
|
|
Battery BMS interface |
Male + female cable with M8 circular connector with high-speed digital communication, length 50 cm M8 extension cables are available separately for purchase in various lengths between 1 and 5 meters |
|
|
Alarm feature |
Pre-alarm contact on BMS |
|
|
Bluetooth |
In the BMS |
|
|
Max batteries per BMS |
50 (384 kWh per BMS 3)) |
|
|
Battery firmware updates |
Battery firmware automatically updated by BMS |
|
|
Repairable |
Yes (cover can be removed with screws) |
|
|
OPERATING CONDITIONS |
||
|
Operating temperature |
Discharge: -20 °C to +50 °C | Charge: +5 °C to +50 °C |
|
|
Storage temperature |
-45 °C to +70 °C |
|
|
Humidity (non-condensing) |
Max. 95 % |
|
|
Protection class |
IP65 |
|
|
MOUNTING |
||
|
Mounting options |

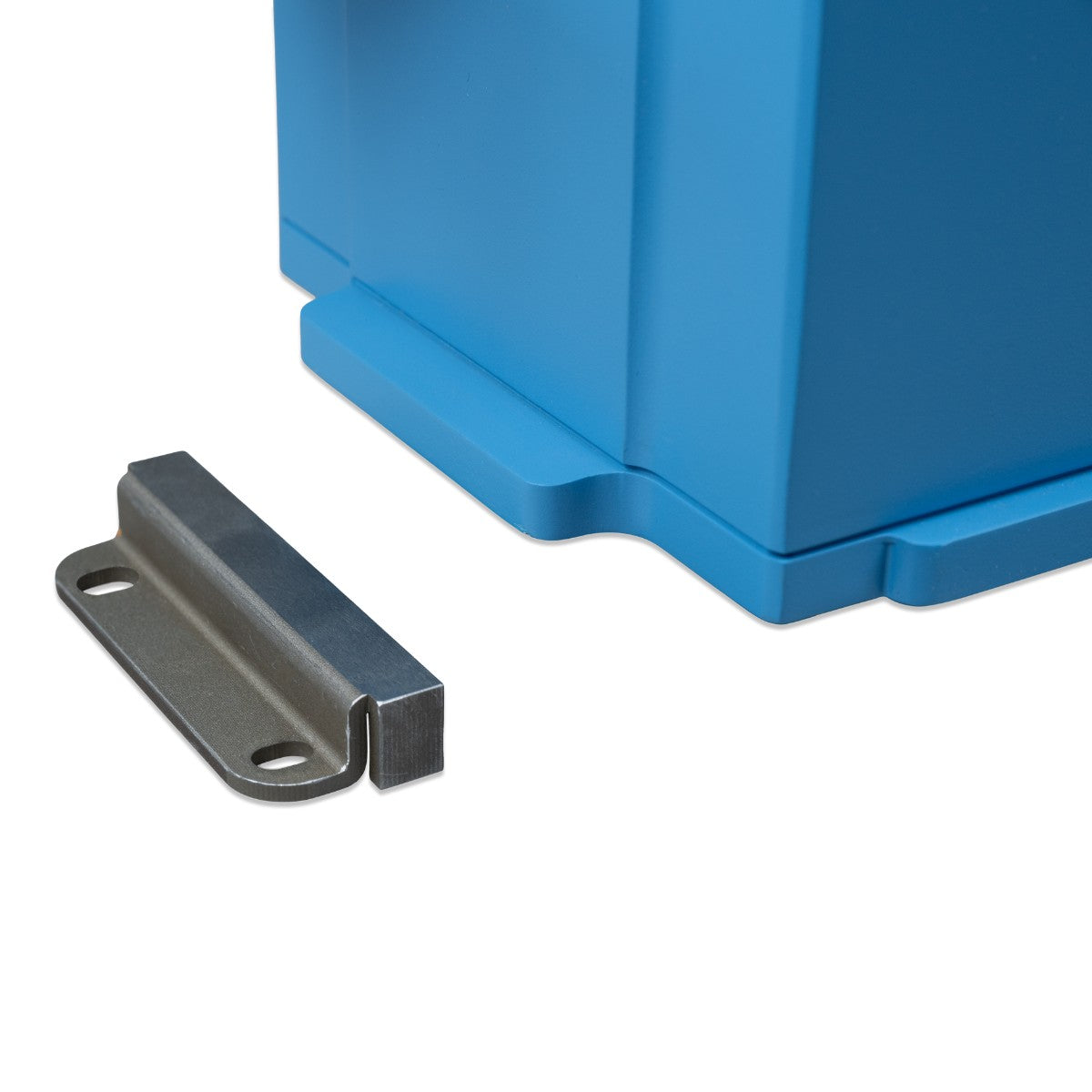

Strap or mounting brackets (brackets included) |
|
|
Can be placed on their sides |
Yes 2) |
|
|
OTHER |
||
|
Self-discharge rate |
≤ 3 % per month @ 25 °C |
|
|
Power connection |
M8 (threaded inserts and bolts) |
|
|
Dimensions (h x w x d) (mm) |
206 x 841 x 205 |
|
|
Weight (est.) |
52 kg / 114.64 lb |
|
|
STANDARDS |
||
|
Safety |
Cells: UL1973 UL9540A IEC62619 (all three pending) |
|
|
Battery: IEC62619 (pending) |
||
|
EMC |
EN 61000-6-3, EN 61000-6-2 |
|
|
Automotive |
ECE R10-6 |
|
|
Performance |
IEC 62620 |
|
|
1) When fully charged 2) The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down 3) Up to 5 BMS-es can be paralleled. This requires a firmware update, expected in Q3 2024. |
||
