VSun 410 Watt Monocrystalline Solar Panel - Bifacial
VSun 410 Watt Monocrystalline Solar Panel - Bifacial
Regular price
$124.99
Regular price
Sale price
$124.99
Unit price
per
SKU: VSUN-410
Weight: 56.0 lb
Couldn't load pickup availability
- description

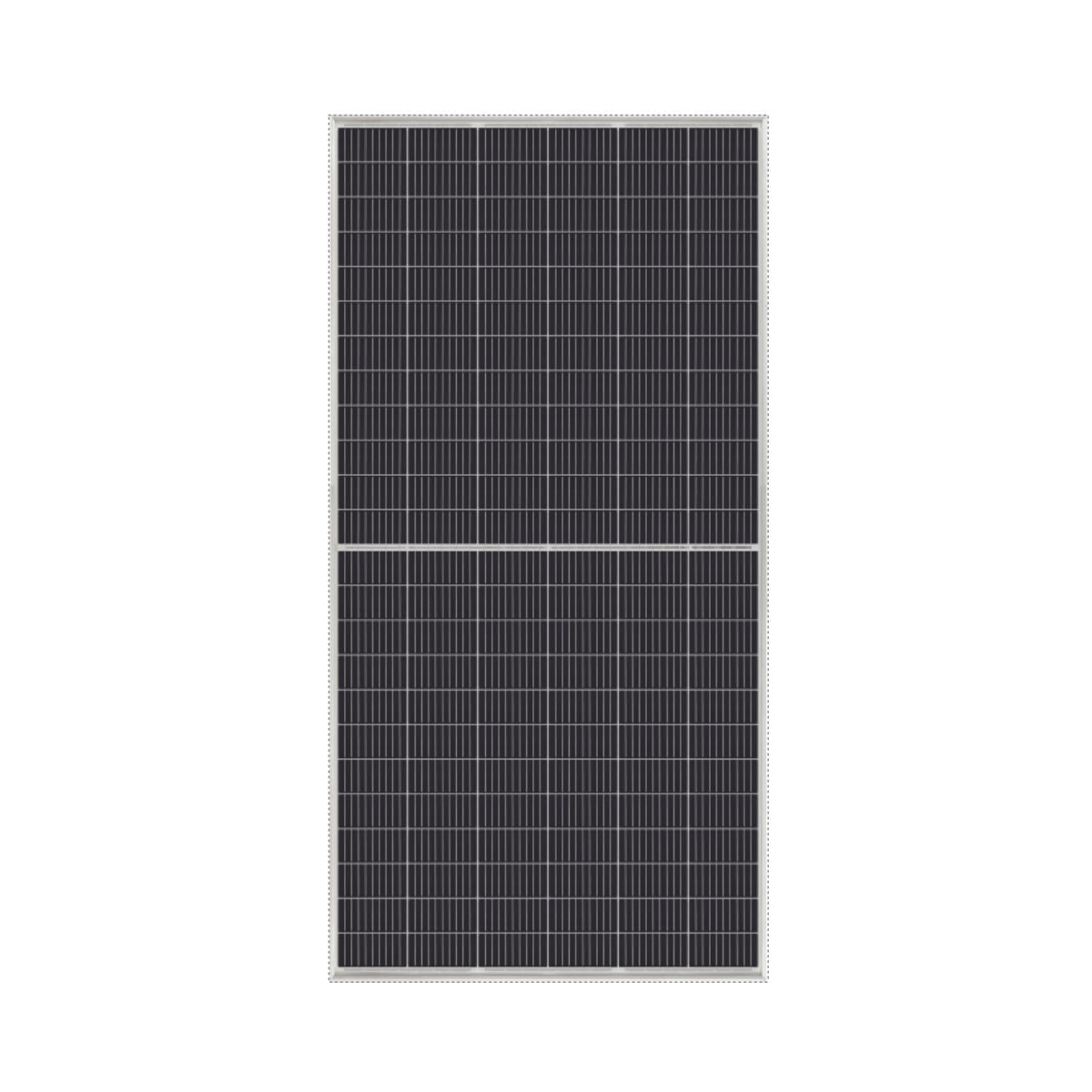

VSun | 410W Monocrystalline Bifacial Solar Panel | VSUN410-144BMH-DG
VSUN, a BNEF Tier-1 PV module manufacturer invested by Fuji Solar, has been committed to providing greener, cleaner and more intelligent renewable energy solutions. VSUN is dedicated to bringing reliable, customized and high-efficient products into various markets and customers worldwide.
Features:
- PERC cell technology
- Higher output power
- Lower risk of micro-crack
- Positive tolerance offer
- Lower risk of hot spots
- Better shading tolerance
- Certified for salt/ammonia corrosion resistance
- Load certificates: wind to 2400Pa and snow to 5400Pa
- Lower LCOE
Electrical Characteristics
| Module Type | VSUN410-144BMH-DG |
|---|---|
| Maximum Power - Pmax (W) | 410 |
| Open Circuit Voltage - Voc (V) | 48.8 |
| Short Circuit Current - Isc (A) | 10.63 |
| Maximum Power Voltage - Vmpp (V) | 40.7 |
| Maximum Power Current - Impp (A) | 10.08 |
| Module Efficiency | 20.12% |
| Maximum System Voltage (V) | 1000/1500 |
| Series Fuse Rating (A) | 20 |
| Bifaciality | 70%±5% |
Mechanical Data & Components
| Characteristic | Detail |
|---|---|
| Dimensions | 2030×1004×35mm / 79.9 x 39.5 x 1.38 in |
| Weight | 25.4 kg / 56 lbs |
| Frame | Silver anodized aluminum profile |
| Front Glass | High transparency, Anti-reflection coated, Semi-toughened safety glass, 2.0mm |
| Cell Encapsulation | EVA (Ethylene-Vinyl-Acetate) or POE |
| Back Glass | Glazed & Semi-toughened safety glass, 2.0mm |
| Cells | 12x12 pieces bifacial monocrystalline solar cells series strings |
| Junction Box | IP68, 3 diodes |
| Cable & Connector |
Portrait: 500 mm, 1x4 mm², compatible with MC4 |
