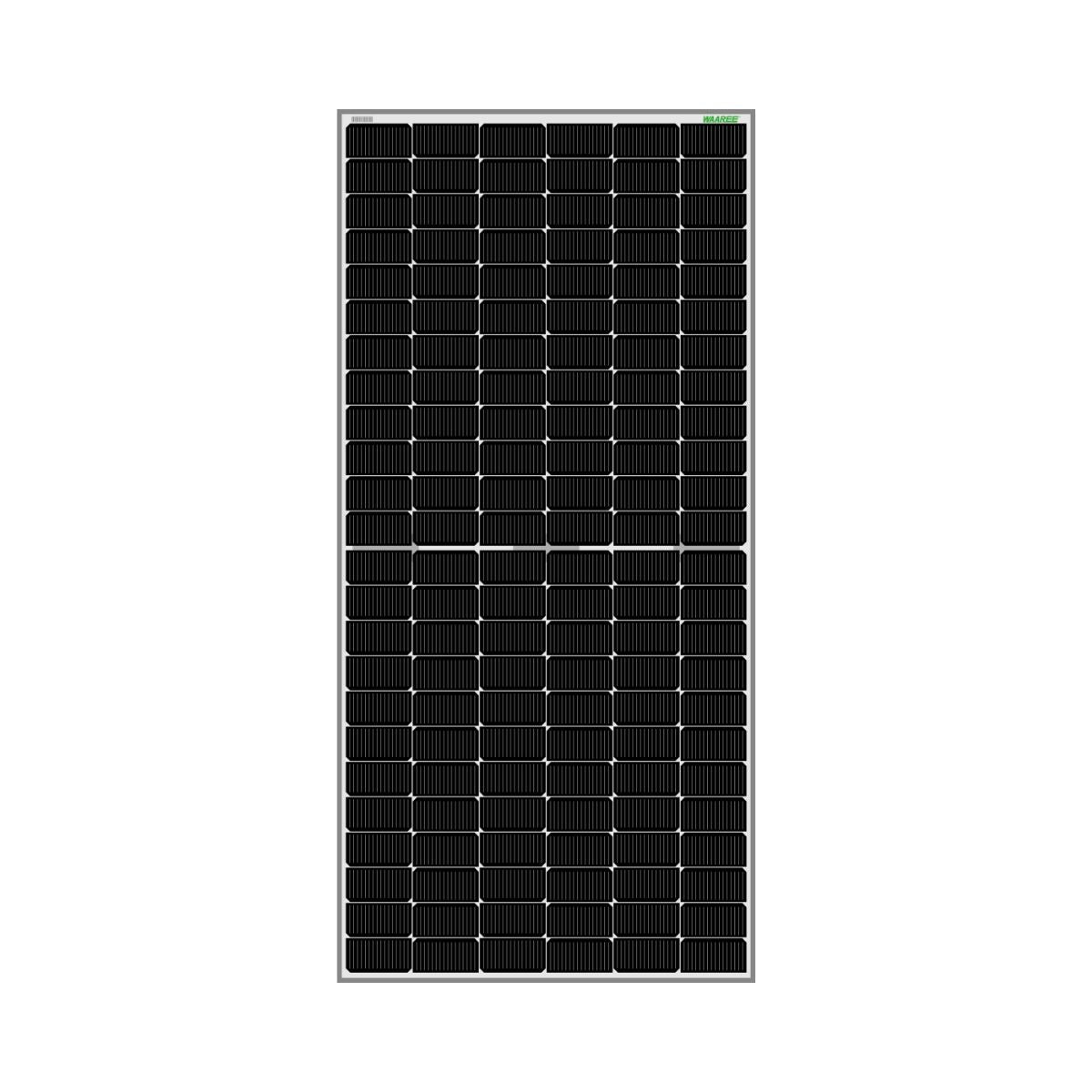

Waaree Elite Series B-Grade 575W 144 Half-Cut Bifacial Solar Panel
Waaree Elite Series B-Grade 575W 144 Half-Cut Bifacial Solar Panel
Regular price
$134.99
Regular price
Sale price
$134.99
Unit price
per
SKU: WAAREE-575
Weight: 72.0 lb
Couldn't load pickup availability
- description
- Product Documents
Waaree Elite Series B-Grade 575W 144 Half-Cut Bifacial Solar Panel
ELITE SERIES - N TOPCON TECHNOLOGY
- 12 year product warranty
- 30 year power output warranty
| Cell Orientation: 144 (12x6 | 12x6) |
| Output Cable: 500 mm (19.69 in) length |
| Operational Temperature: -40°C ~+85°C |
| Power Output Tolerance: 0~+2W |
| Nominal Operating Cell Temperature: 45 ± 2°C |
| Maximum System Voltage: DC1500V (IEC/UL) |
| Series Fuse Rating |
Electrical Characteristics STC
| Maximum Power (Pmax) | 575 Watts |
| Maximum Power Current (Imp) | 13.11 A |
| Maximum Power Voltage (Vmp) | 43.86 V |
| Short Circuit Current (Isc) | 13.87 A |
| Open Circuit Voltage (Voc) | 52.30 V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m2,Cell Temperature 25°C
Mechanical Characteristics
| Cell Type | M10/M10R N-type TOPCon Bifacial |
| Front Glass | 2 mm Low Iron HTAR semi-tempered glass |
| Back Glass | 2 mm Low Iron Printed semi-tempered glass |
| Frame | Anodized Aluminum Alloy |
| Dimensions (in) | 89.7 x 44.65 x 1.30 inches / 2278 x 1134 x 33 mm |
| Weight (lbs) | 71.65 lbs / 32.5 kg |
| Surface Maximum Load Capacity | 5400 pa |
